Umbauanleitung/retrofit instruction 125 MAX Series

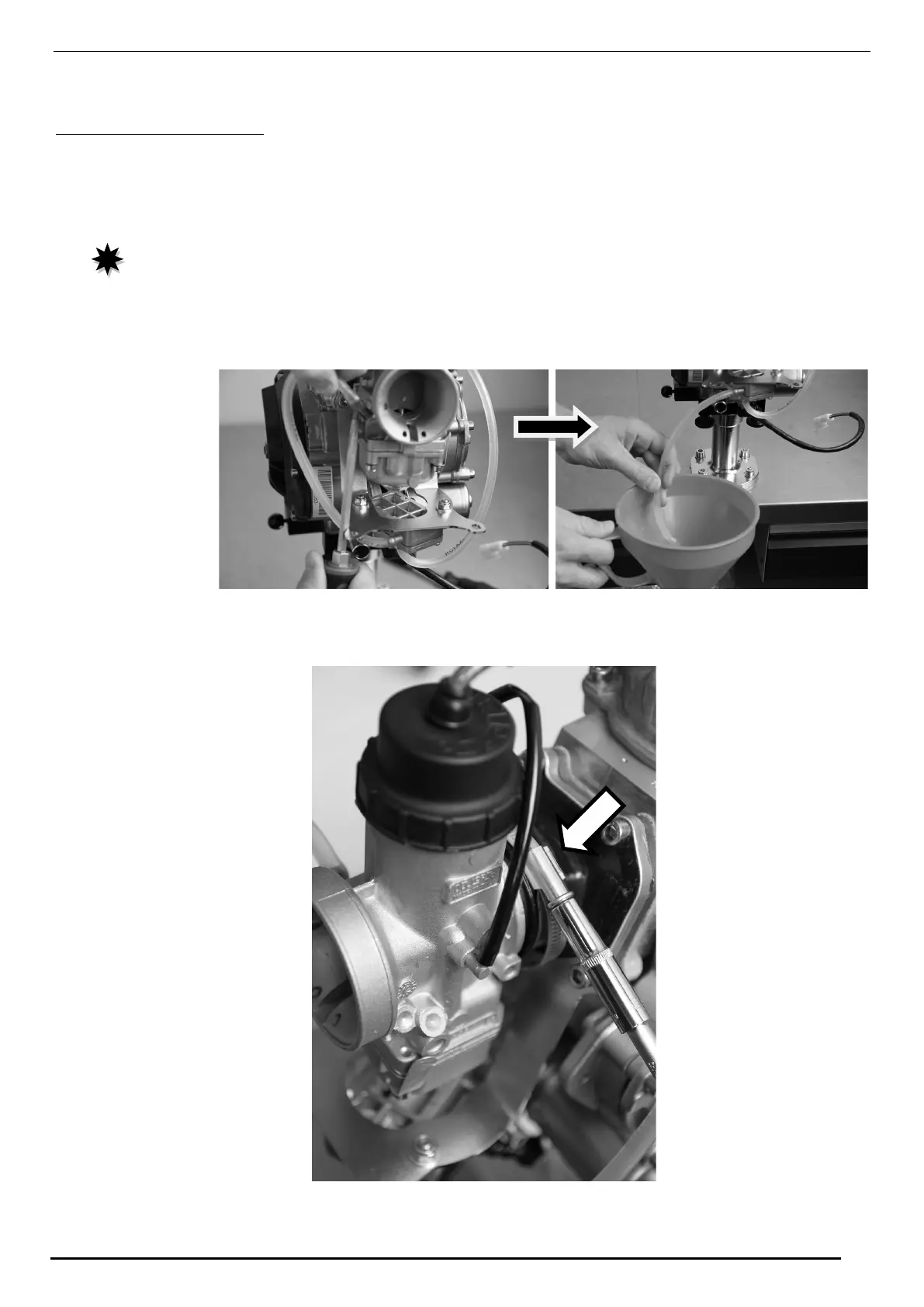

4.2) REMOVAL OF CARBURETOR, CARBURETOR FLANGE AND REED VALVE ASSY.
4.2.1) Dismantle carburetor
 Disconnect the fuel inlet line.
 Note: Drain excess fuel!
ENVIRONMENT NOTE:
All operating fluids and cleaning agents can damage the environment if not disposed
of properly.
Dispose of operating fluids in an eco-friendly manner!
Fig. 8 (K00310)
 Loosen clamp on carburetor flange.
Fig. 9 (K00309)
Seite/page 36/59 Ausgabe/Edition 09/2014
