Umbauanleitung/retrofit instruction 125 MAX Series
 Notice: The carburetor still may contain residual amounts of fuel.

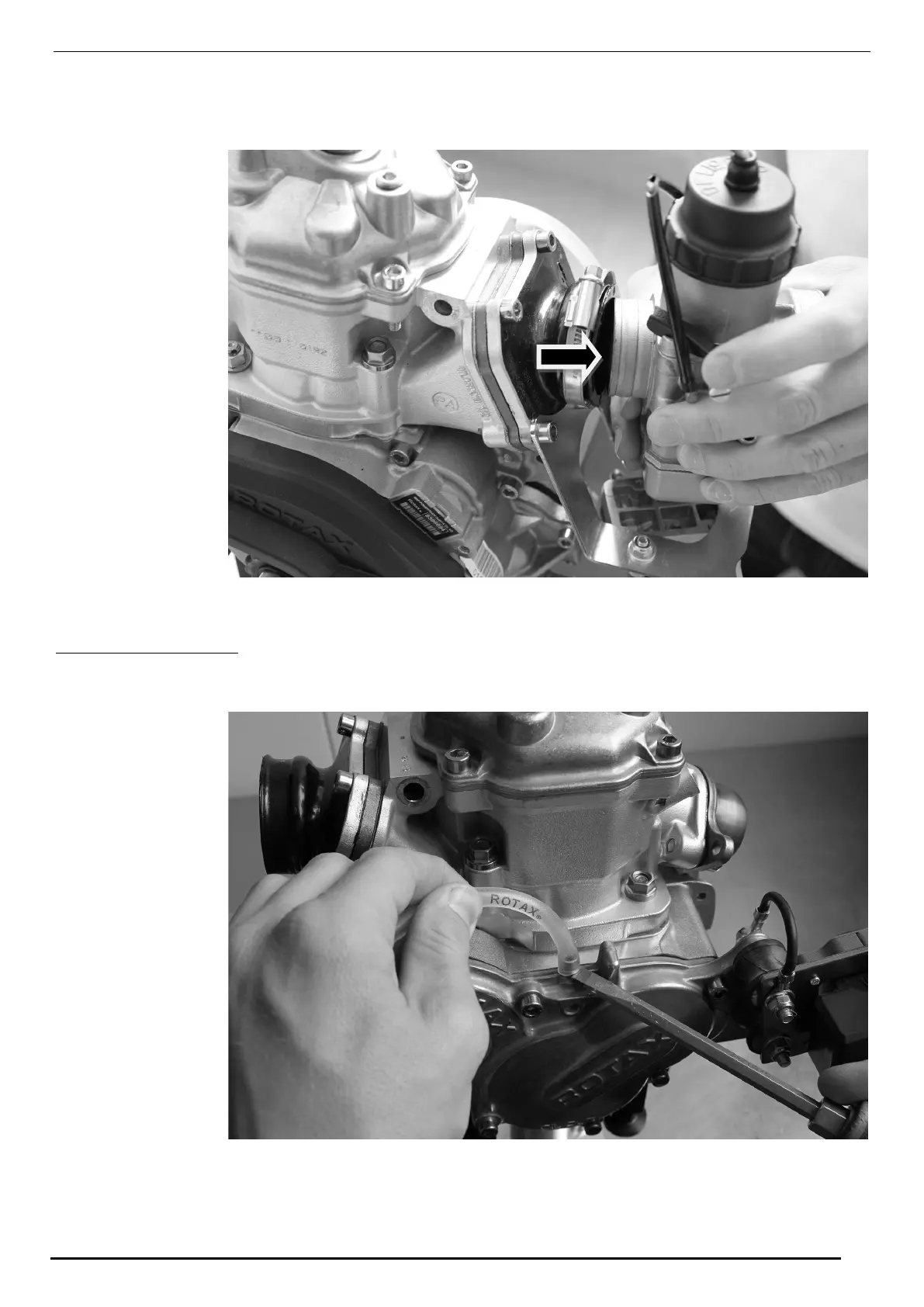

 Remove the carburetor.
Fig. 10 (K00311)
4.2.2) Carburetor flange
 Disconnect impulse line on engine side.
Fig. 11 (K00312)
Seite/page 37/59 Ausgabe/Edition 09/2014
