Umbauanleitung/retrofit instruction 125 MAX Series

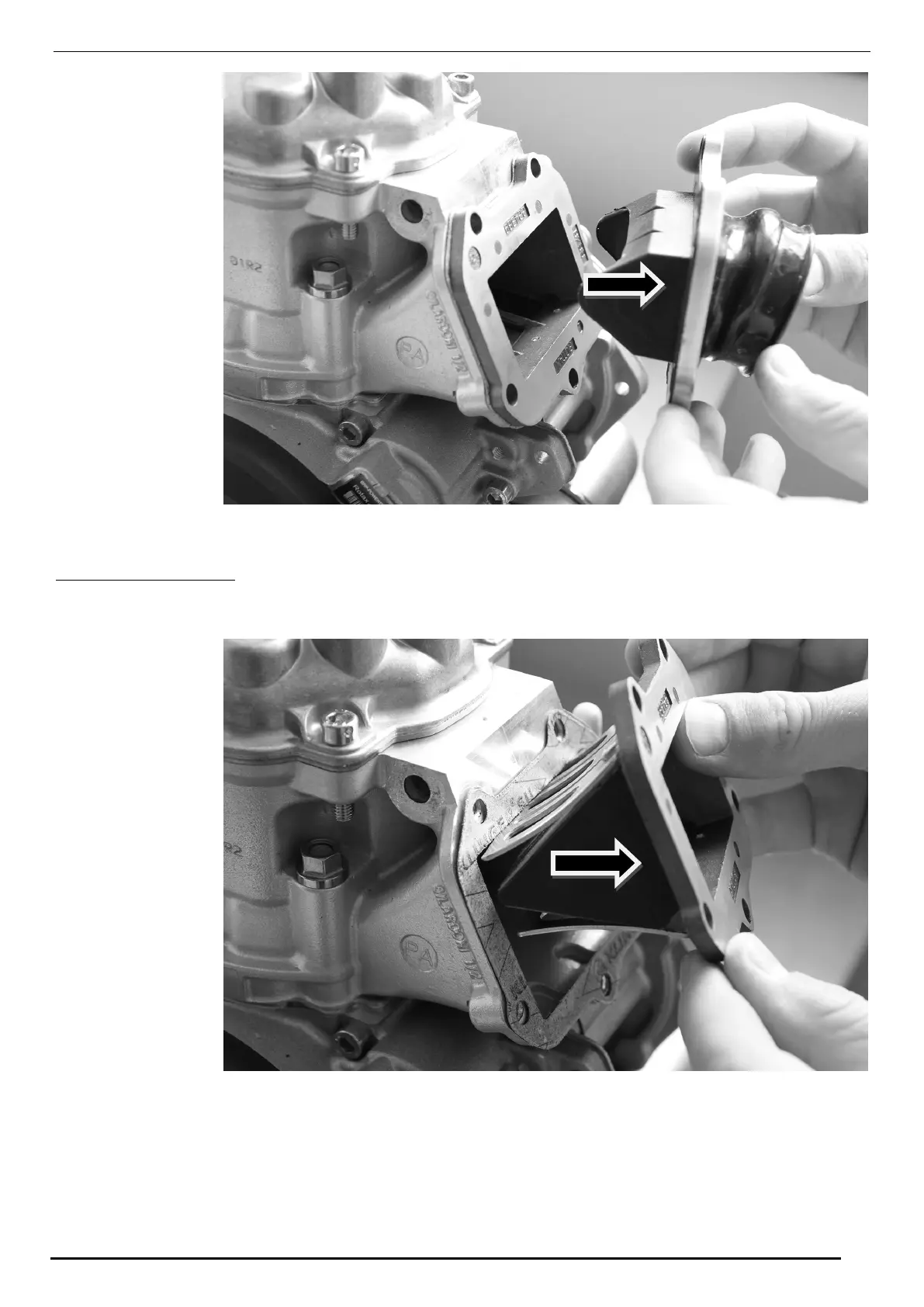

Fig. 13 (K00315)
4.2.3) Reed valve assy.
Remove reed valve assy.
Fig. 14 (K00316)
Seite/page 39/59
Ausgabe/Edition 09/2014
