Rotax 125 Max Retrofit Instruction

Umbauanleitung/retrofit instruction 125 MAX Series

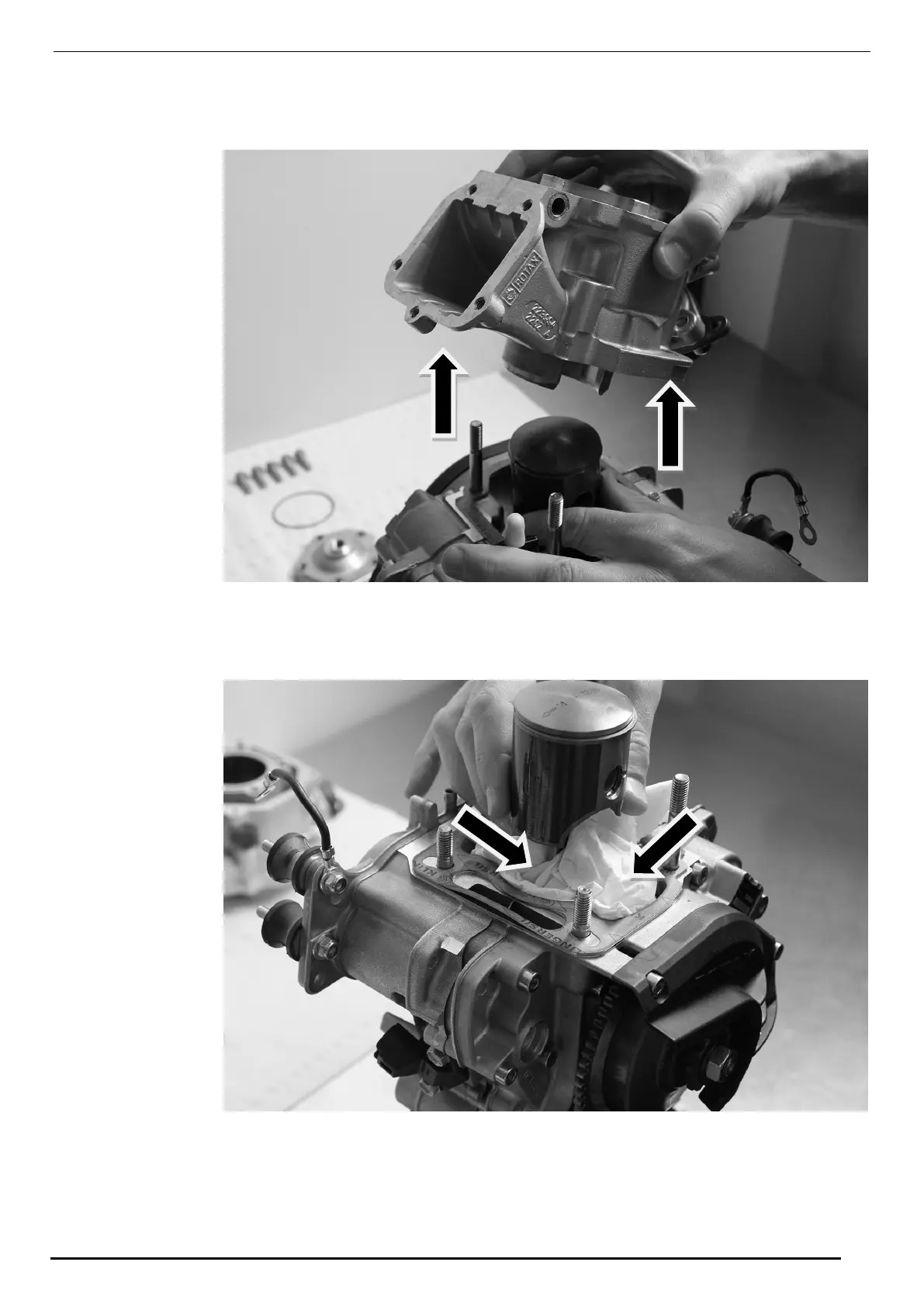

 Carefully remove the cylinder, in the same time hold the piston with the other hand.
 Caution: Risk of damage to the cylinder.
Fig. 23 (K00327)
 Put a clean cloth (or similar) into the cylinder chamber / combustion chamber, so that no
foreign particles and/or parts can enter it.
Fig. 24 (K00328)
Seite/page 44/59 Ausgabe/Edition 09/2014

Rotax 125 Max Specifications

General

Engine type	Single-cylinder, 2-stroke
Displacement	124.8 cc
Cooling system	Liquid-cooled
Bore x Stroke	54 mm x 54.5 mm
Starter	Electric starter
Intake System	Reed valve
Clutch	Centrifugal dry clutch
Fuel System	Carburetor
Exhaust system	With silencer
Maximum Power	28 hp (20.5 kW) @ 11, 500 rpm
Maximum Torque	21 Nm at 10, 500 rpm
Gearbox	Direct drive
Lubrication	Mixture lubrication
