16

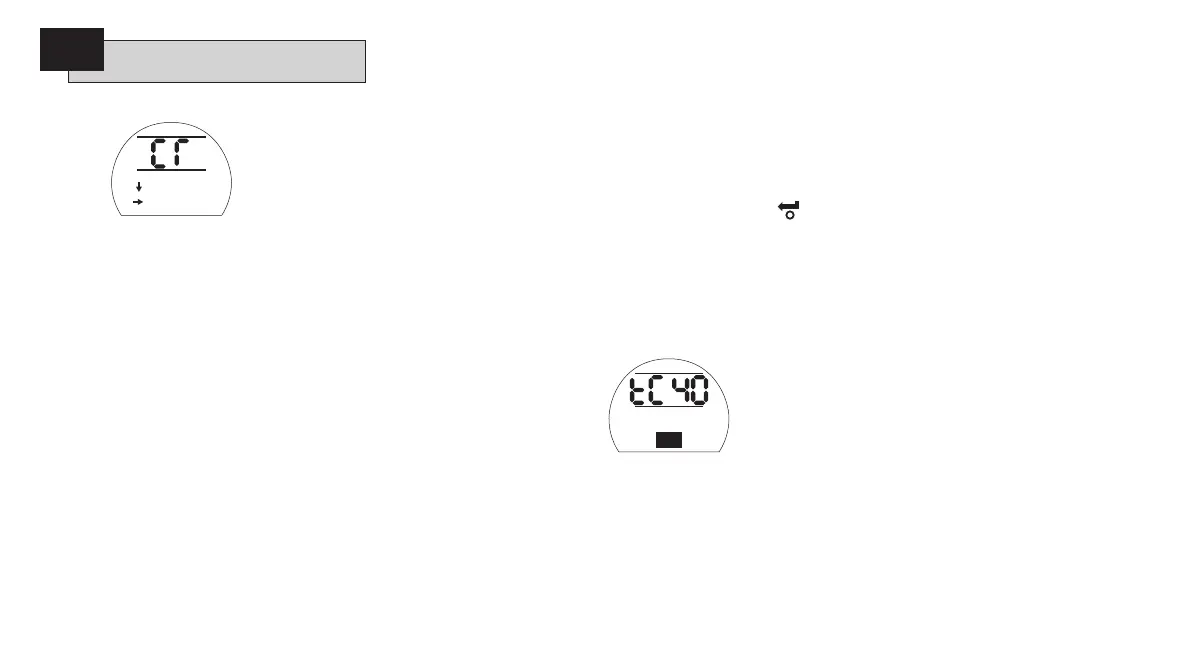

7.7 Crossroad [Cr]
To access the Basic Settings press
the arrow
m
key (refer to Section 8
Commissioning Basic Settings page 17).
To access the Configuration Settings
press the arrow
k
key (refer to
Section 9 Commissioning Configuration
Settings page 27).
7.8 The Actuator Display –
Setting/Checking Mode
Actuator functions as laid out in the
Basic and Configuration commissioning
stages, can be individually displayed by
using the Setting Tool arrow keys.
The
m
arrow key will always display
the FIRST function on the next level
DOWN within the procedure.
The
k
arrow key will always display
the NEXT function on the SAME level
and will wrap around the functions on
the same level.
The actuator display indicator lamps will
continue to indicate valve position but
will also flash during IR communication.
Actuator functions are displayed in
code form in the top left portion of the
liquid crystal display screen.
The setting for the displayed function is
shown in the top right hand portion of
the screen. Depending on the actuator
function displayed, its setting may be
an option or a value.
Text relating to the function and setting
values will be displayed in the lower
display.
In setting mode the Setting Tool
+
or
-
keys will cause the setting to be
changed. In checking mode the settings
cannot be altered.
In setting mode, once displayed, a new
setting can be entered into the actuator
memory by pressing the
key.
The setting will flash off and back on,
confirming its selection, and "
Stored
"
will be displayed for 2 seconds in the
text display.
TOP LEFT
PORTION
Function e.g.
tC = Torque Close
TOP RIGHT
PORTION
Function Setting
e.g. Value = 40%
LOWER DISPLAY
Function: Close Torque
Setting Value: 40%
Typical Actuator Function Display
Setting Mode Enabled
7.9 Returning to
Valve Position Display
There are five ways of returning to valve
position display:
1. Approximately 5 minutes after the
last Setting Tool operation the
display will automatically return to
position display.
2. Press the
m
and
k
arrow keys
together.
3. Press the
m
arrow key until the
display returns to position.
4. Select Remote control using the
red Local/Stop/Remote selector.
5. If you have the new Setting Tool
Pro then you can use the
iarrow
key to return to position display.
Basic Setup
Config Setup
Close Torque
40%
Commissioning continued
7
