5. Remote I/P Setting
Ensure that the correct [Od]
Control Type
setting is selected (refer to page 40).
For Pakscan this is [oP]
Network
.
The factory default for [PF]
Aux I/P Mask
is [OF]
0000 1111
.
Examples
1. The full range of remote controls is needed. Open and Close are NO and ESD
and Stop/maintain is NC.
Aux I/P 4 3 2 1
Function 1 1 1 1 = F
Invert 0 0 1 1 = 3 i.e. set [PF] to [F3]
2. Open and close control is required along with 2 inverted digital signal inputs
(Note that with this setting the open and close commands will be maintained.)
Aux I/P 4 3 2 1
Function 0 0 1 1 = 3
Invert 0 0 1 1 = 3 i.e. set [PF] to [33]
3. Only an ESD input is needed. The requirement is for push to run control with a
NO contact input.
Aux I/P 4 3 2 1
Function 1 1 0 0 = C
Invert 1 0 0 0 = 8 i.e. set [PF] to [C8]

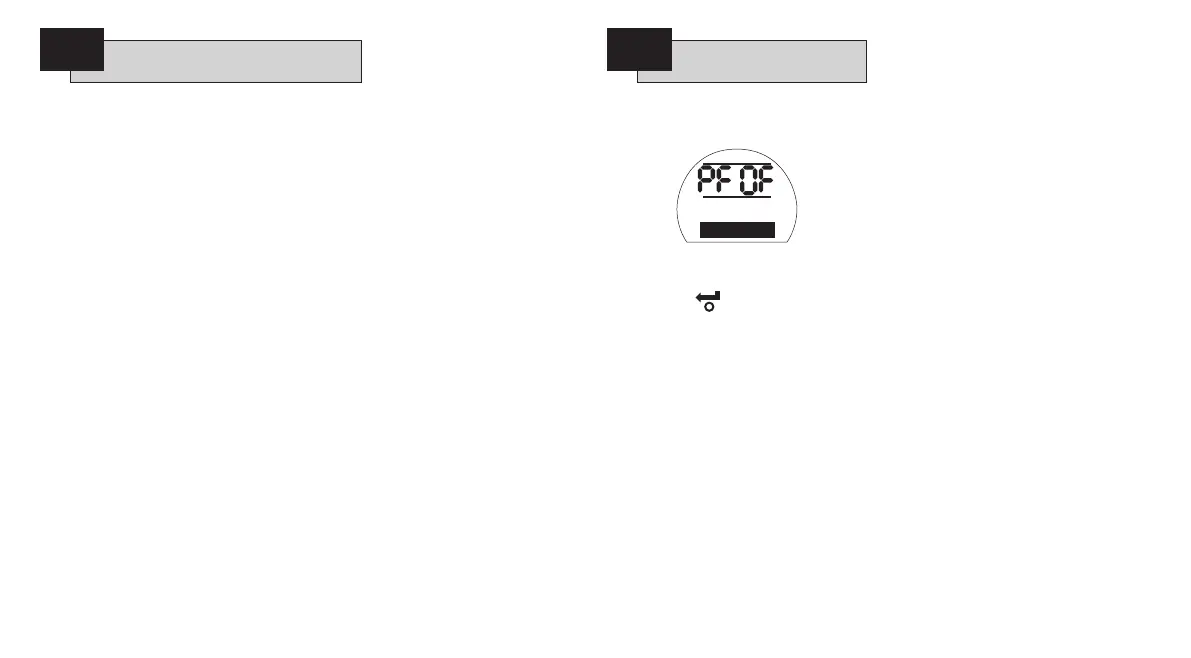

PF
Pakscan Remote
Auxiliary Input (continued)
Using the
+
or
-
keys display the
required mask setting.
Auxiliary Input Mask [OF]
PRESS THE
KEY.
The displayed option will flash (stored)
indicating that it has been set.
For Pakscan module positioning settings
[OF], refer to page 53.
If Pakscan positioning control is
required,
PRESS THE m KEY.
Display [FL]
Low Set Point Position
(refer to page 53).
PF
Pakscan Remote
Auxiliary Input
Aux I/P Mask
Bits: 0000 1111
