Section 6 Maintenance HP7A Manual
www.rottlermfg.com
6-56

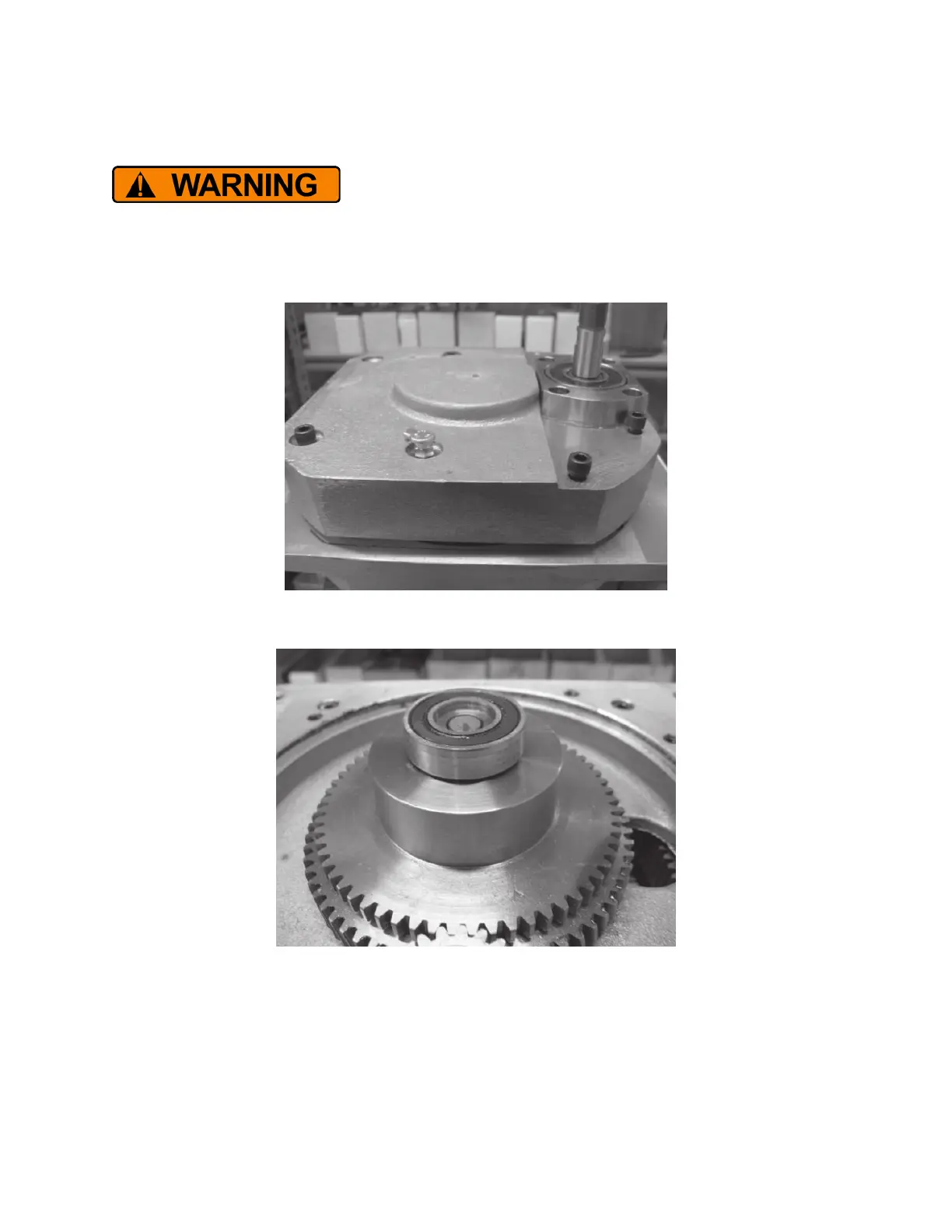

Removing Adjusting Shaft Assembly
Disconnect all electrical and air power before making any repairs.
1. Follow procedure for replacing shear pin.
2. Place rocker arm in a level position.
3. Remove 6 bolts from top gearbox housing.
4. Remove top gearbox housing.
To Next Page
