Section 6 Maintenance HP7A Manual
www.rottlermfg.com
6-12

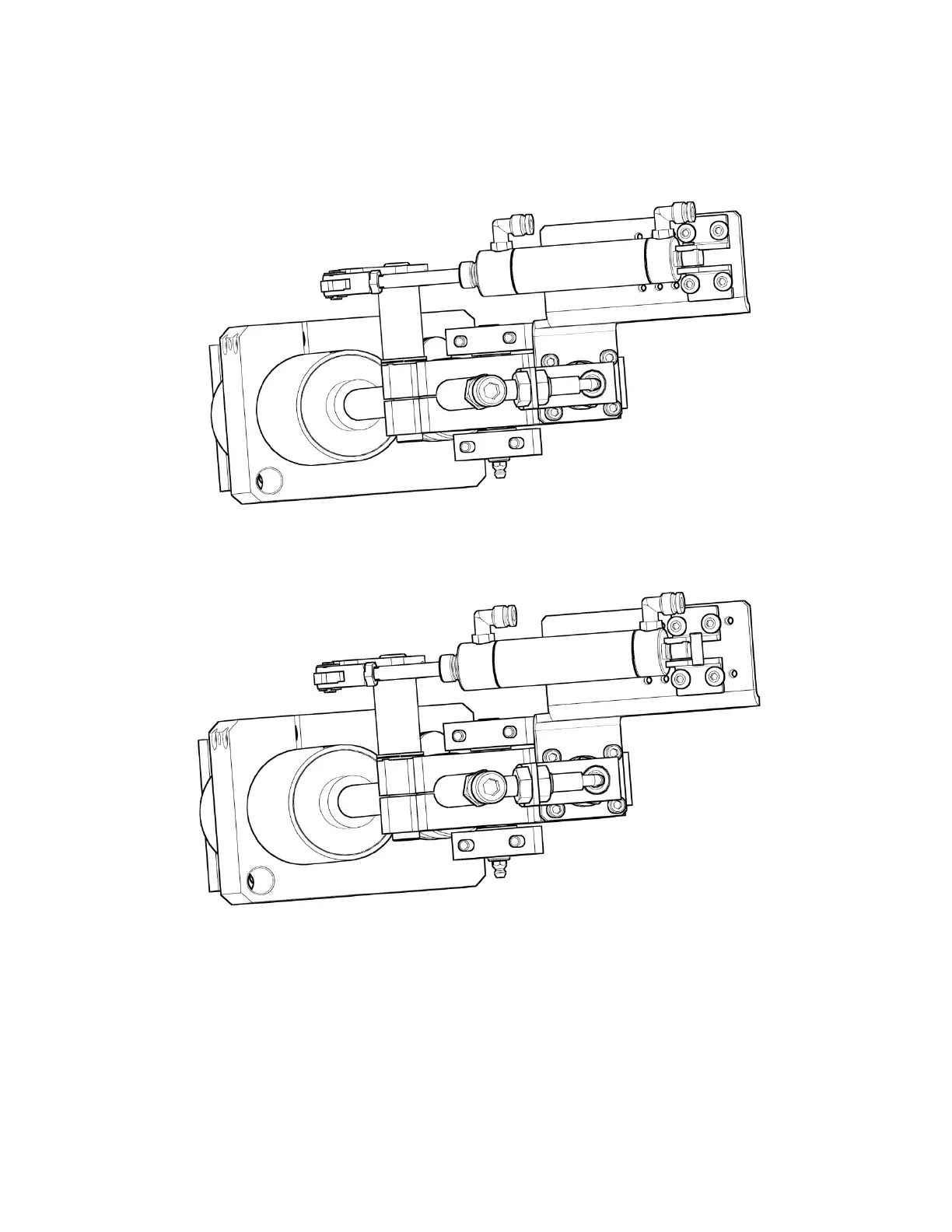

Adjusting Pivot Lock Cylinder Assembly
1. Shut off power and air supply for machine.
2. Remove rocker arm cover.
3. Remove 4 button head bolts holding cylinder brackets to mount plate.
4. Move cylinder and brackets down to next set of mounting holes.
5. Replace 4 button head bolts.
6. Turn air supply on and conrm that pivot lock assembly is working correctly.
7. Replace rocker arm cover.
8. Turn power on.
