Rottler HP 7A - Drive Tube Pivot and Universal Joint

Section 6 Maintenance HP7A Manual
www.rottlermfg.com
6-2

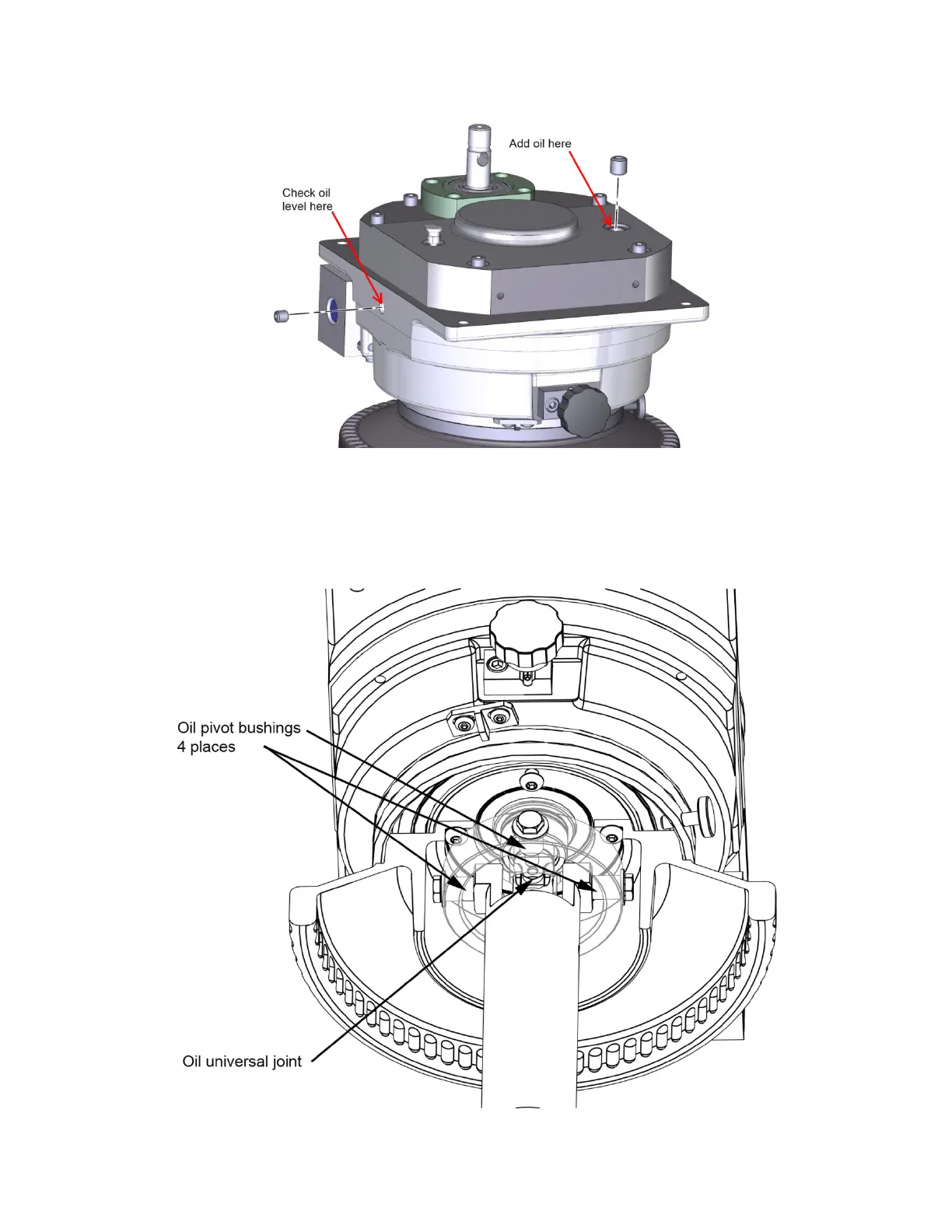

Drive Tube Pivot and Universal Joint
The drive tube assembly and universal joint connect the hone head drive and adjusting shaft assembly to
the gear housing.
Every 8 hours, Lubricate the hinge points of the universal joint with ISO VG 68 Bearing Oil.
