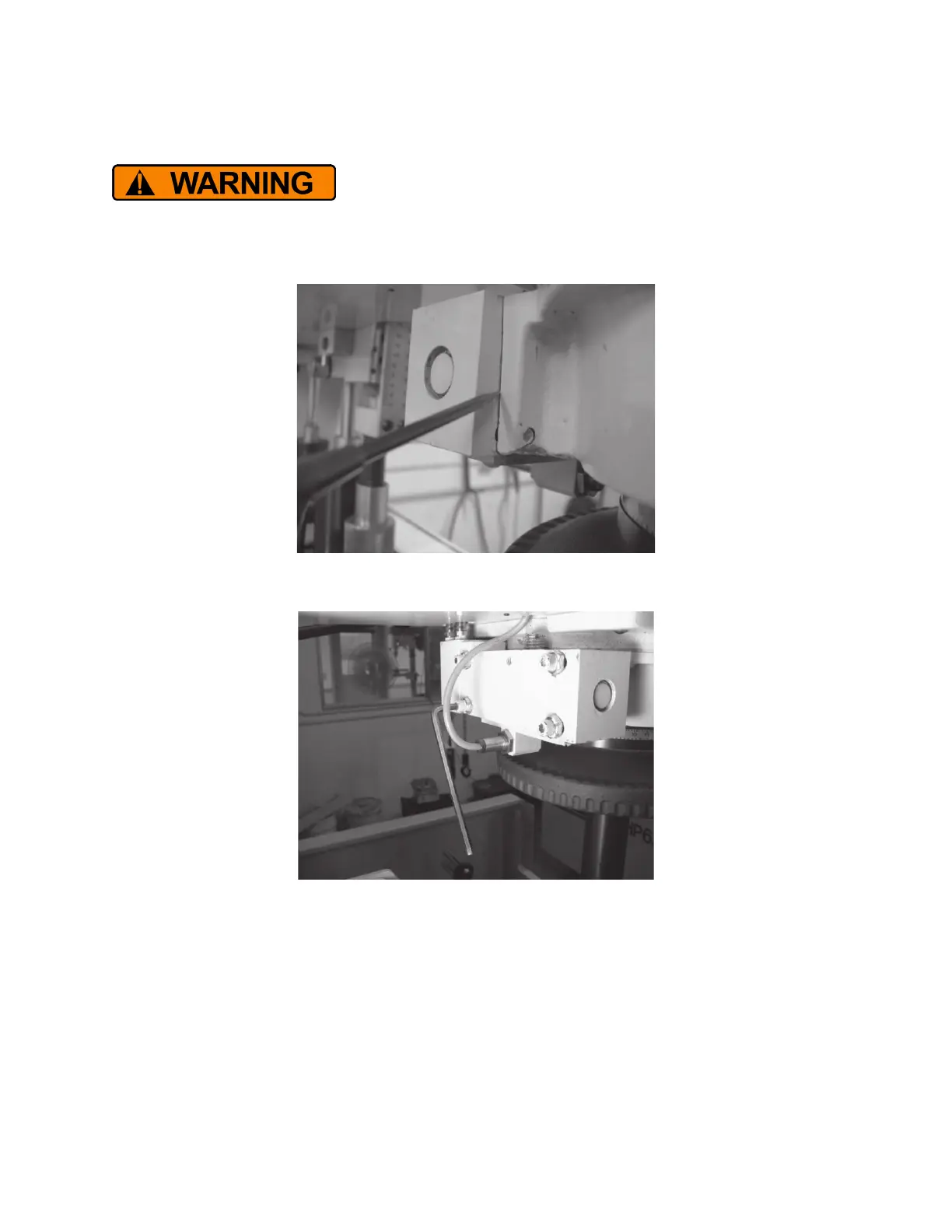

Adjusting Feed Out Actuator Housing
Disconnect all electrical and air power before making any repairs.
1. Place scribe mark on feed out actuator housing to mark original location.
2. Loosen 4 bolts holding housing to back of gearbox.
3. Use rubber mallet to move housing to the left or right as needed. Take caution not to strike shifting
spool pin.
4. Tighten bolts then test feed out performance.
5. Make further adjustments as needed.
