Section 6 Maintenance HP7A Manual
www.rottlermfg.com
6-13
Gear Housing Removal
1. Remove hone head assembly from drive tube if still attached.
2. Place rocker arm in a horizontal position.
3. Turn off the power and disconnect air supply to machine.

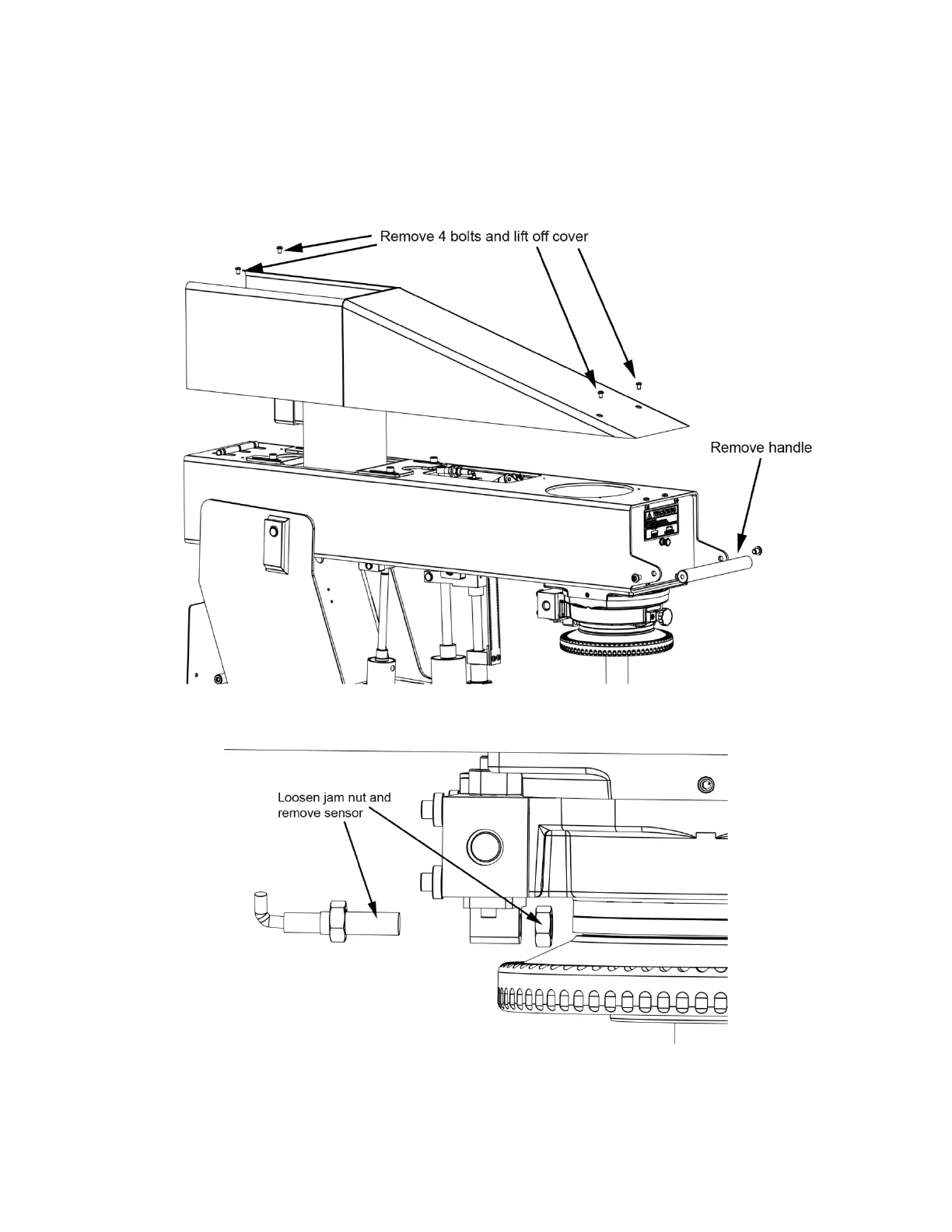

4. Remove top cover and rocker arm handle.
5. Remove sensor from back of gearbox assembly.
