CROSS HATCH CALCULATOR BUTTON
The CROSS HATCH CALCULATOR button will bring up the AUTO CROSS HATCH CALCULATOR
screen.

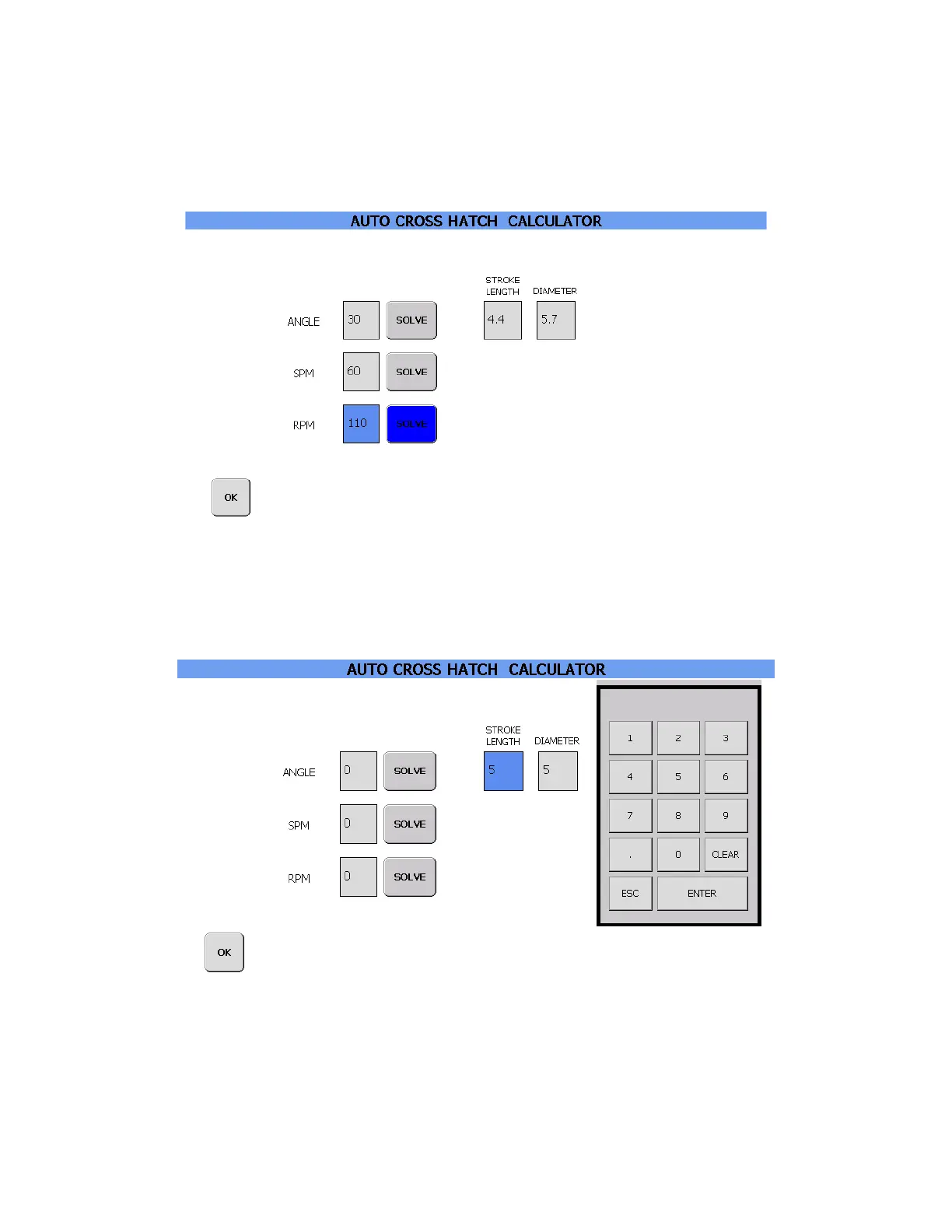

AUTO CROSS HATCH CALCULATOR SCREEN
On this screen you can calculate the stroke speed and RPM needed to achieve a desired cross hatch
angle. By touching one of the value boxes you can input a value used in the calculation by using the pop
up keypad.
Enter the STROKE LENGTH, DIAMETER, ANGLE, and one other value, then press the SOLVE button
next to the remaining blank value, and the required value will be displayed. Touch the OK button to return
to the PROGRAM SELECT screen.
