Rottler HP 7A - Manual Mode Button

Section 4 Control Denitions HP7A Manual
www.rottlermfg.com
4-10
MANUAL MODE BUTTON

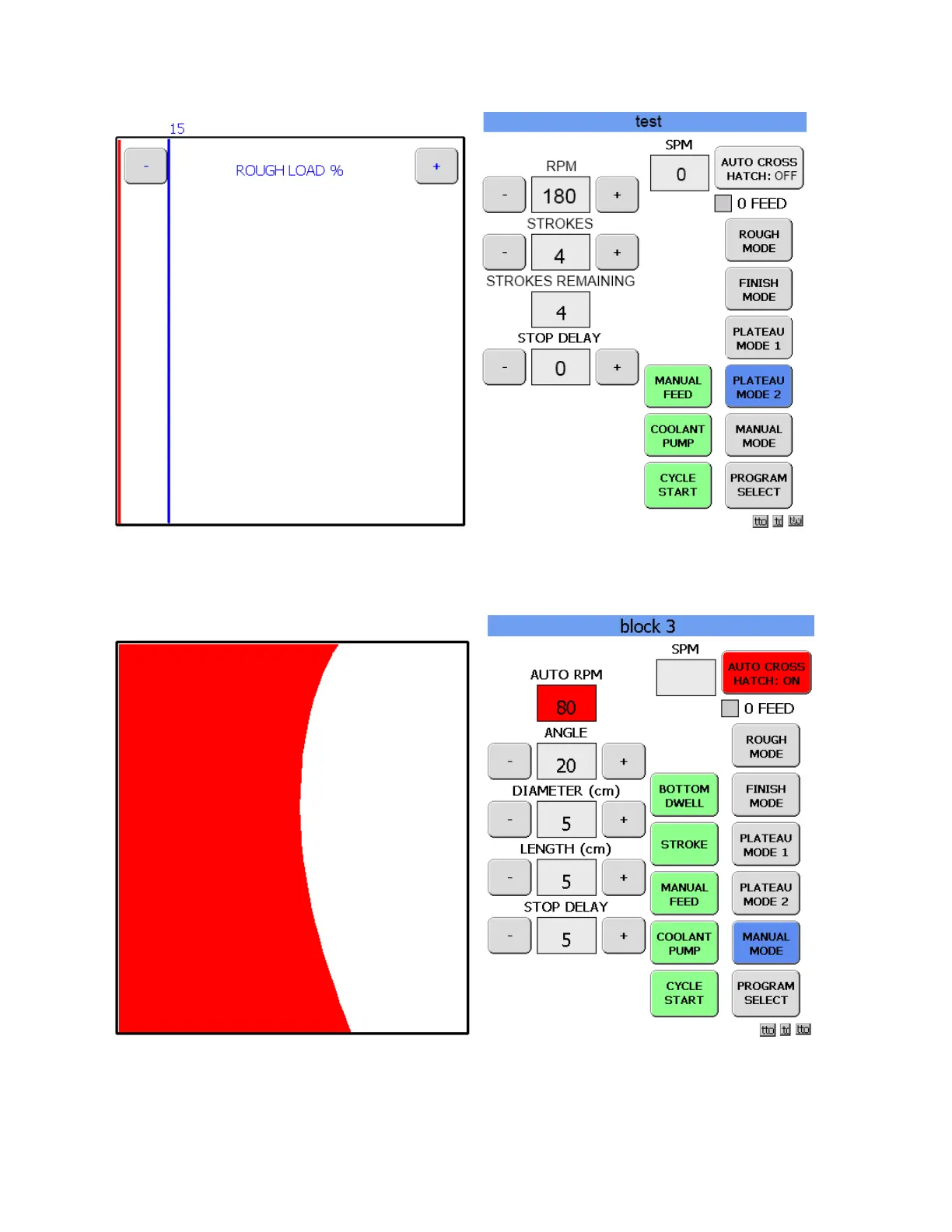

If the MANUAL MODE button is touched the following screen will appear.
The manual operation mode has no preset values. It allows an operator to have total control of the honing
process. The graph section will only show the real time motor load when the motor is running.
