This will show the settings and the current RPM of the motor that is required to achieve the desired cross
hatch angle. All the settings can be changed if desired at any time.
PLATEAU MODE BUTTONS
The PLATEAU MODE buttons will bring up a different center section and different graph section.
This screen has buttons for changing all the values. The graph section has the same layout as the honing
section, expect only with one load setting line and button set.

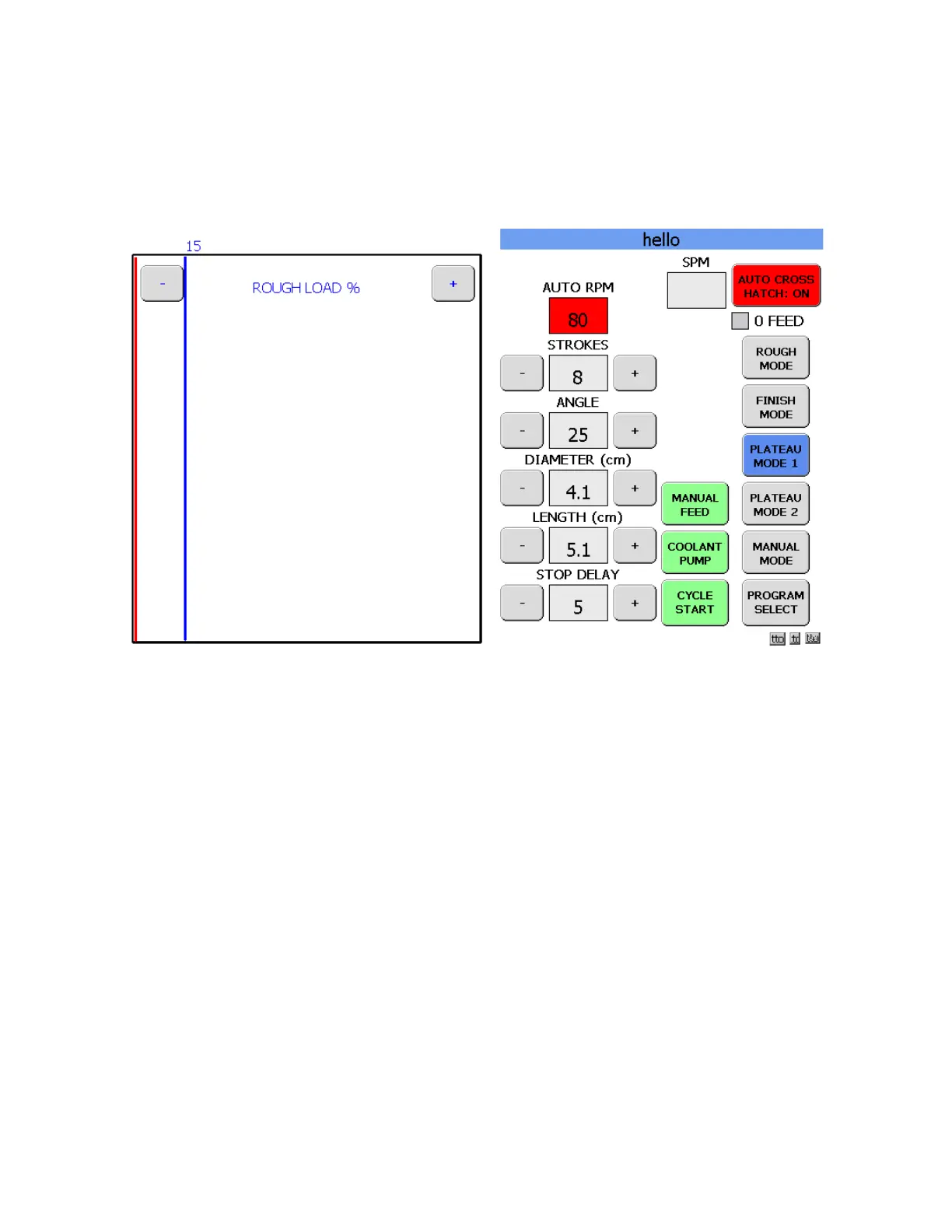

If the AUTO CROSS HATCH function is OFF then the following screen will appear when the PLATEAU
MODE 1 or PLATEAU MODE 2 is touched. The RPM and number of STROKES can be set before the
process is started.
