Rottler HP 7A - Gear Housing Disassembly

Section 6 Maintenance HP7A Manual
www.rottlermfg.com
6-19
Gear Housing Disassembly
Follow procedure to remove gear housing from machine.

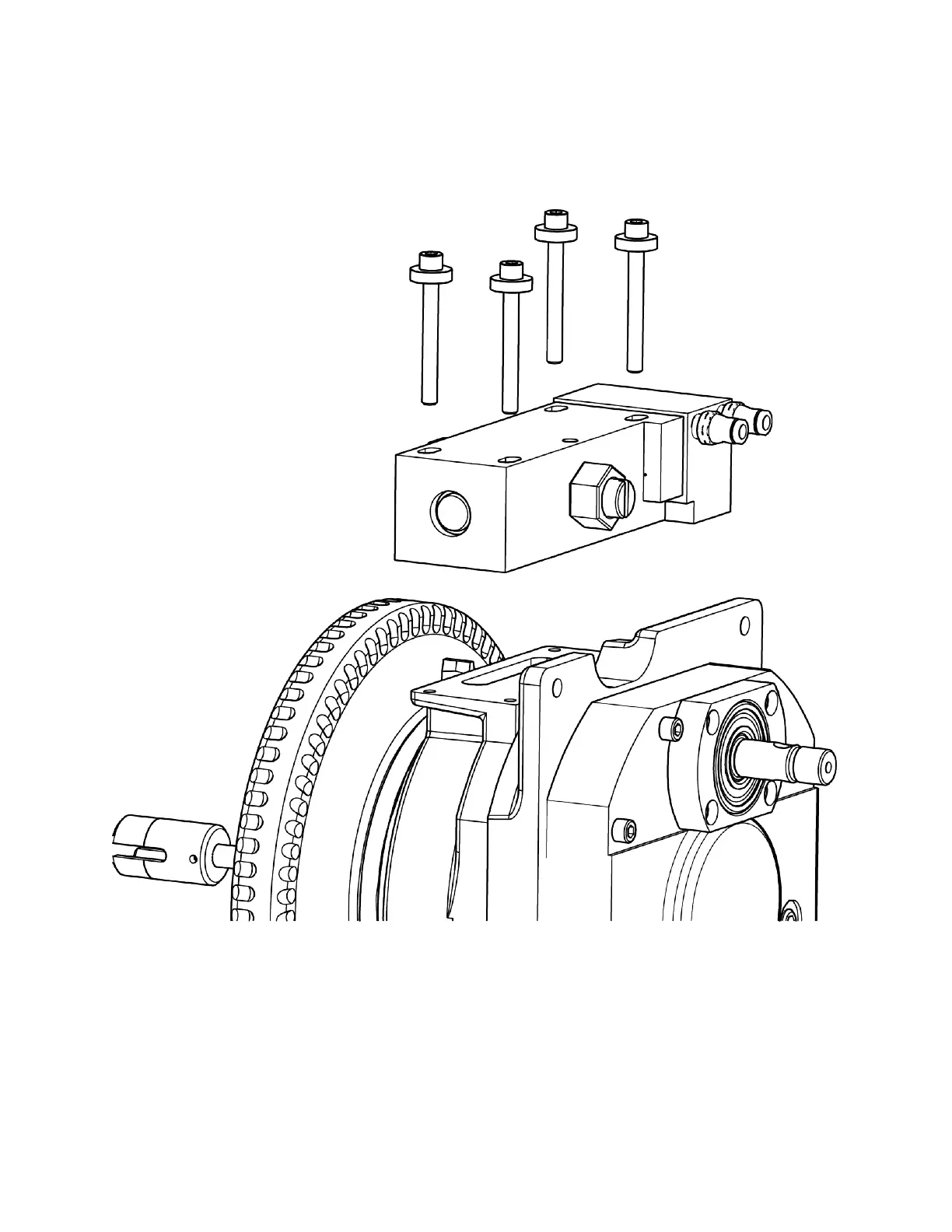

Set gear housing in the position shown and remove the actuator assembly.
After actuator housing is removed drain oil from gear housing through opening for actuator housing.
