Rottler HP 7A - Replacing Air Cylinder

Section 6 Maintenance HP7A Manual
www.rottlermfg.com
6-61
Replacing Air Cylinder
Disconnect all electrical and air power before making any repairs

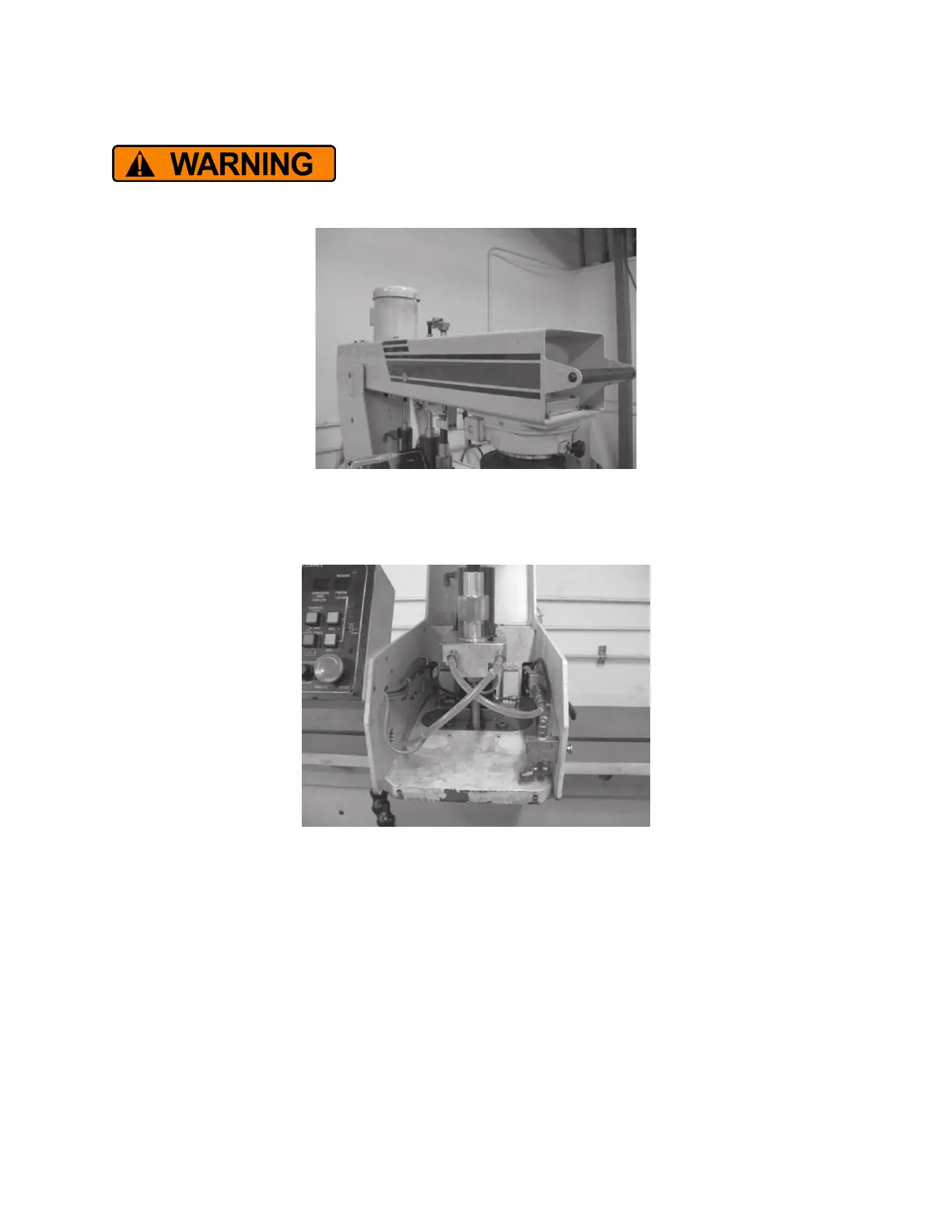

1. Remove upper cover from rocker arm.
2. Remove carriage cover plates.
3. Remove clamp bar and lever arms.
4. Remove air cylinders.
