Section 5 Operating Instructions HP7A Manual
www.rottlermfg.com
5-26

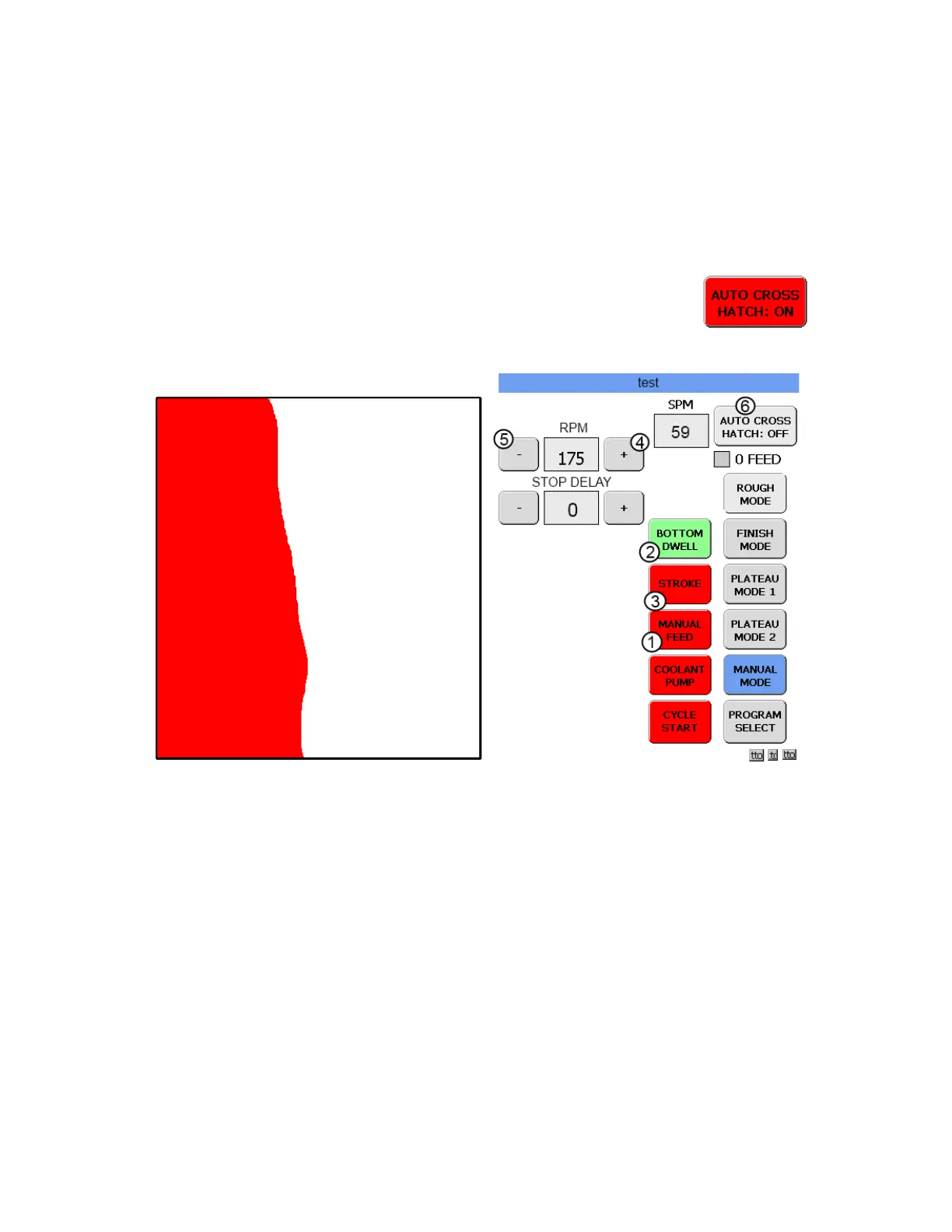

Release the MANUAL FEED button (1) and let the hone continue to stroke. Touch and hold the BOTTOM
DWELL button.2 The hone will stop stroking at the bottom of the bore while continuing to rotate. Release
the button and the hone will start stroking. Touch the STROKE button (3) to deactivate it and the hone will
stop stroking at the top of the bore. Touch the STROKE button again to reactivate it and the stroking will
start again.
Now touch the + (4) and – (5) buttons next to the RPM box to increase or decrease the running RPM. Set
RPM to 195 then touch the AUTO CROSS HATCH OFF button.(6) The button will turn red and the OFF
will now read ON and the center row of control buttons will change to the following.
