2015-2017 5.0L Mustang Phase 1/2 RHD ROUSHcharger Kit
SECTION A – DISASSEMBLY
1316-RHD-AA 12152016 14 800.59.ROUSH

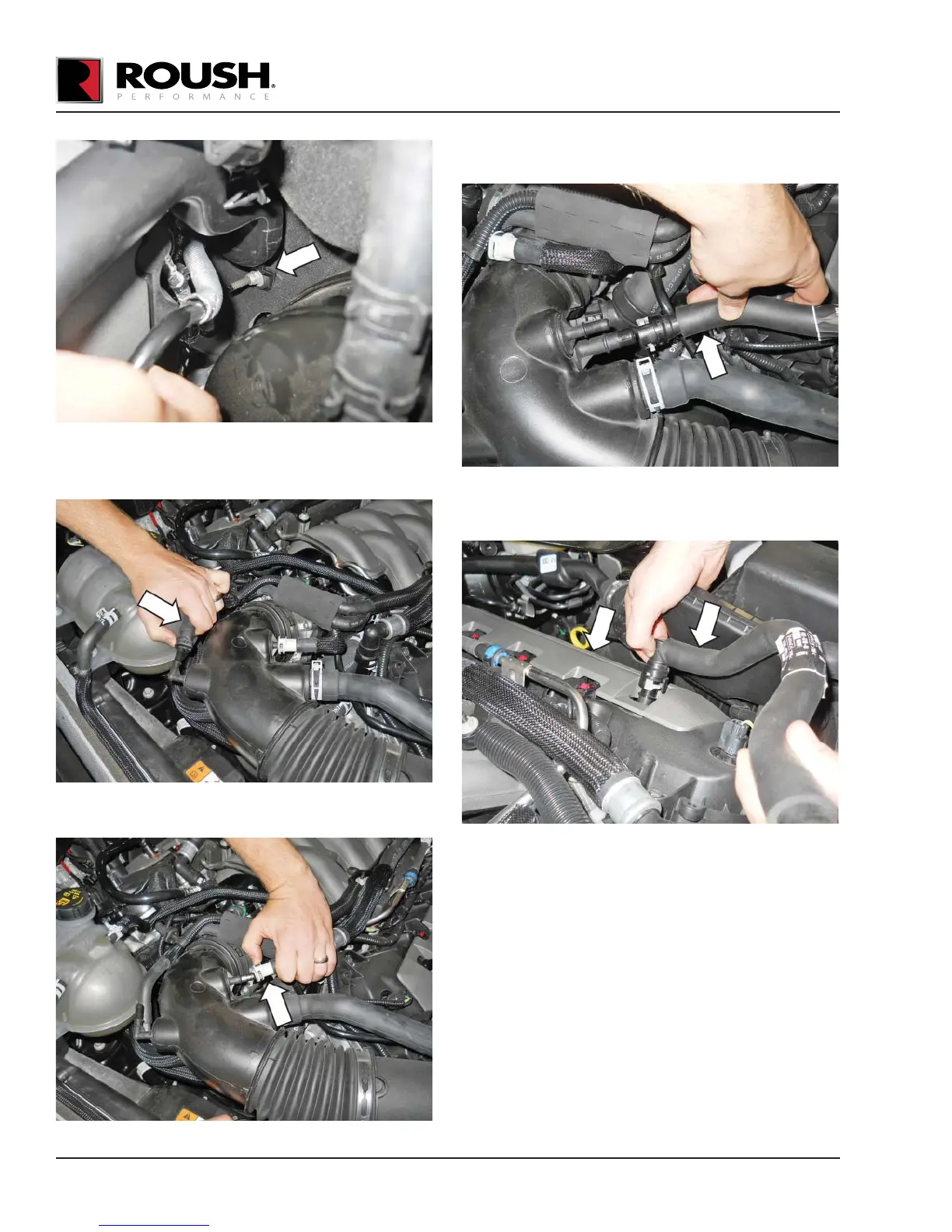

Showing nut at fi rewall
22. Disconnect the brake aspirator line from the clean
air tube.
23. Disconnect the vacuum line from the air cleaner
tube.
24. Disconnect the positive crankcase ventilation
(PCV) tube from the clean air tube.
25. Disconnect the PCV fresh air inlet tube from the
left-hand cam cover and remove the tube from the
vehicle.
26. Loosen the clamps securing the clean air tube at
the airbox and throttle body. Remove the clean
air tube from the throttle body and airbox lid. The
clean air tube will not be reused.
