2015-2017 5.0L Mustang Phase 1/2 RHD ROUSHcharger Kit
SECTION A – DISASSEMBLY
1316-RHD-AA 12152016 15 800.59.ROUSH

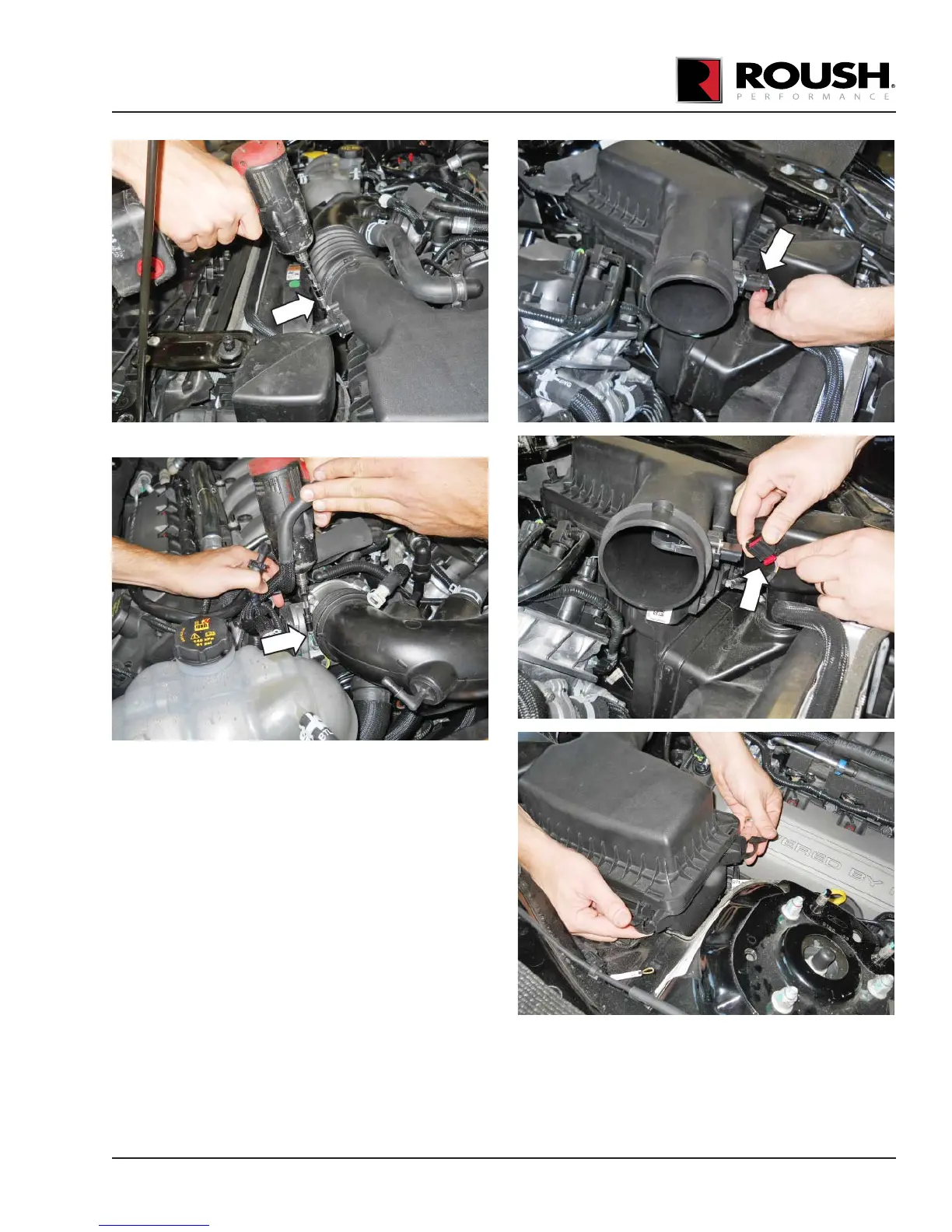

Clamp at air box
Clamp at throttle body
27. Remove the mass air ow (MAF) sensor connector
by pulling the red locking tab back and pressing
the black release tab. Release the two (2) locking
tabs securing the upper airbox lid to the lower
airbox. Disconnect the MAF wiring harness
retainer from the front edge of the upper airbox
lid. Remove the lid from the vehicle and set it
aside. The MAF sensor will be reused and the
airbox lid will be discarded.
