ROUSH 422011 - Disconnect Fuel Injector Connectors

2015-2017 5.0L Mustang Phase 1/2 RHD ROUSHcharger Kit
SECTION A – DISASSEMBLY
1316-RHD-AA 12152016 20 800.59.ROUSH
LH

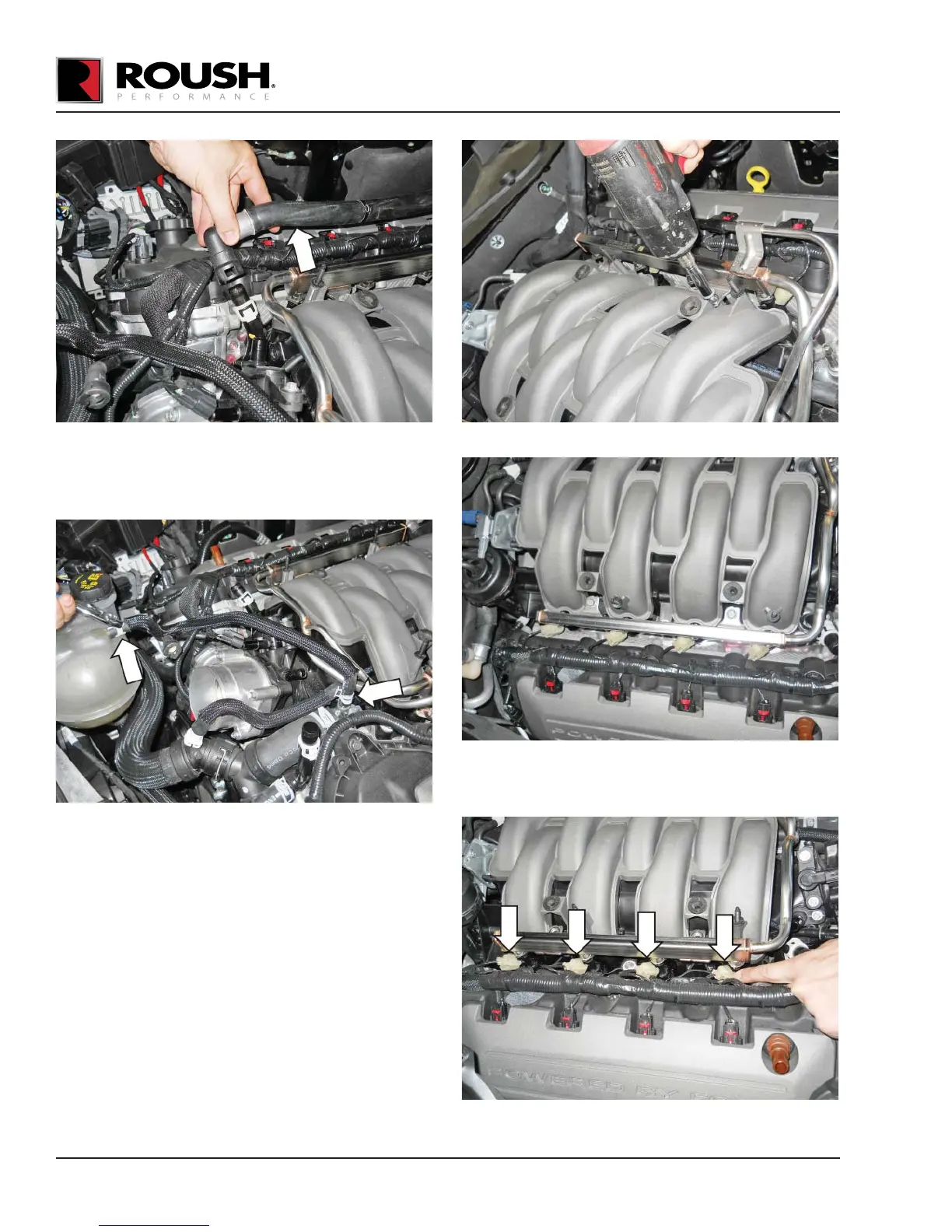

42. Disconnect the clamps on the hose ends and
remove the 3/8" engine coolant degas hose from
both the engine and the degas bottle.
43. Remove the four (4) fuel rail bolts. These bolts will
be reused.
NOTE: It is not necessary to remove the fuel rail from
the intake manifold assembly.
LH
RH
44. Disconnect the eight (8) fuel injector electrical
connectors (four [4] on each side).
RH shown
