2015-2017 5.0L Mustang Phase 1/2 RHD ROUSHcharger Kit
SECTION A – DISASSEMBLY
1316-RHD-AA 12152016 22 800.59.ROUSH

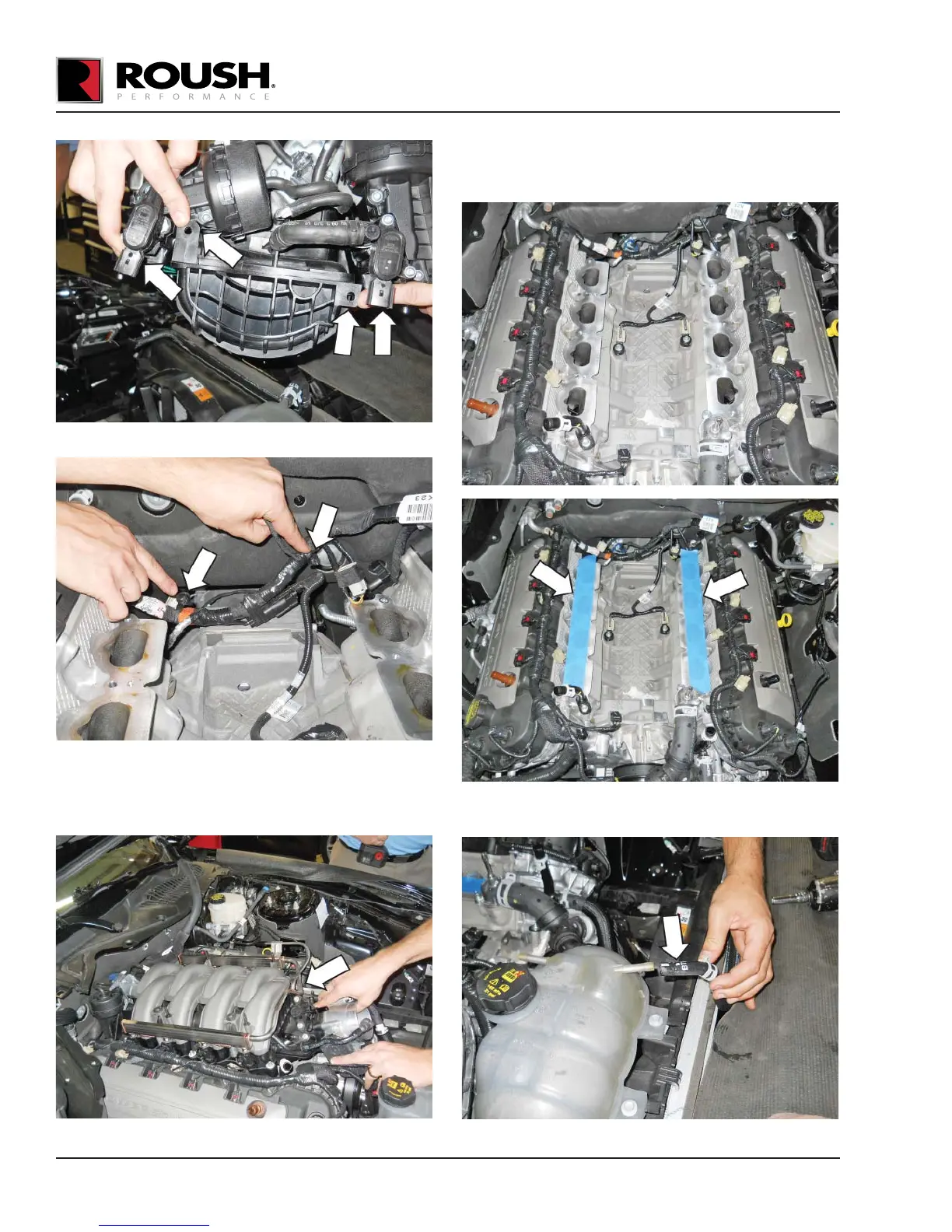

Harness pushpin retainer points on rear of intake
Pin retainers on harness
48. Remove the intake manifold and fuel rail assembly
from the vehicle. This hardware will not be
reused.
49. Clean the intake mounting surfaces and apply
tape over the open intake ports to prevent engine
contamination.
50. Disconnect the vent hose from the engine coolant
degas bottle and at the water pump inlet.
Degas vent
To Next Page
