2015-2017 5.0L Mustang Phase 1-2 RHD ROUSHcharger Kit
SECTION B – MODIFICATIONS
1316-RHD-AA 12152016 45 800.59.ROUSH

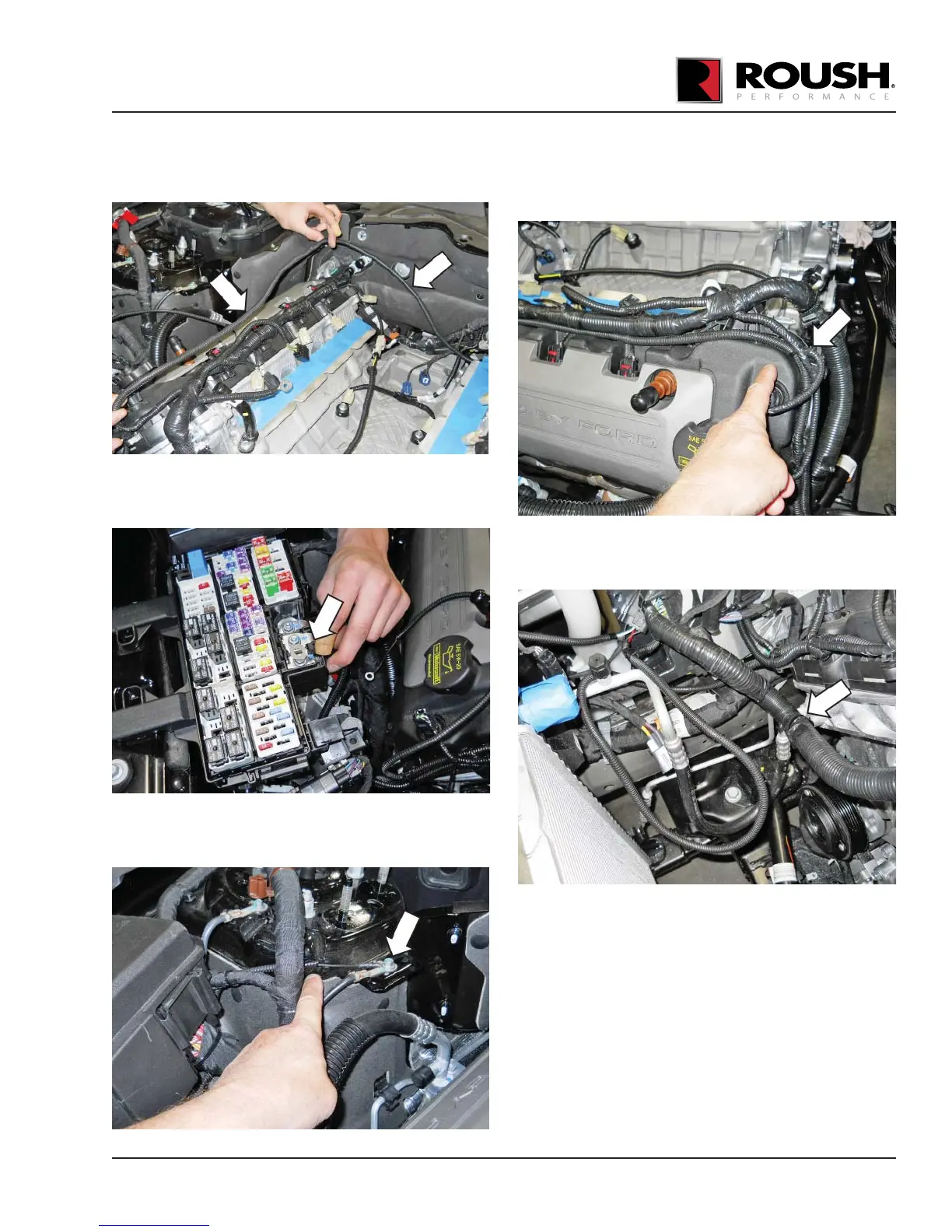

5. Route the intercooler pump wire harness in back
of the cylinder head along the RH engine harness
to the area near the fuse box.
6. Install the intercooler pump harness red power
wire to the rst post in the fuse box. Tighten the
nut to 10 Nm.
7. Install the ground wire with the existing ground
wire near the RH strut tower and retighten the bolt
to 10 Nm (coil up extra wire slack).
8. Route and tuck the intercooler pump harness
under the engine harness and down the RH coil
cover towards the fuse box as shown. Secure it in
place with zip ties.
9. Retain the engine harness to the front cover
using the zip tie with fur tree (156-00329) found in
Hardware Kit E (1315-TVSHKE).
10. Route the intercooler pump wire harness over the
top and in front of the wiper washer bottle. Secure
it in place with zip ties as necessary.
