2015-2017 5.0L Mustang Phase 1/2 RHD ROUSHcharger Kit
SECTION B – MODIFICATIONS
1316-RHD-AA 12152016 44 800.59.ROUSH

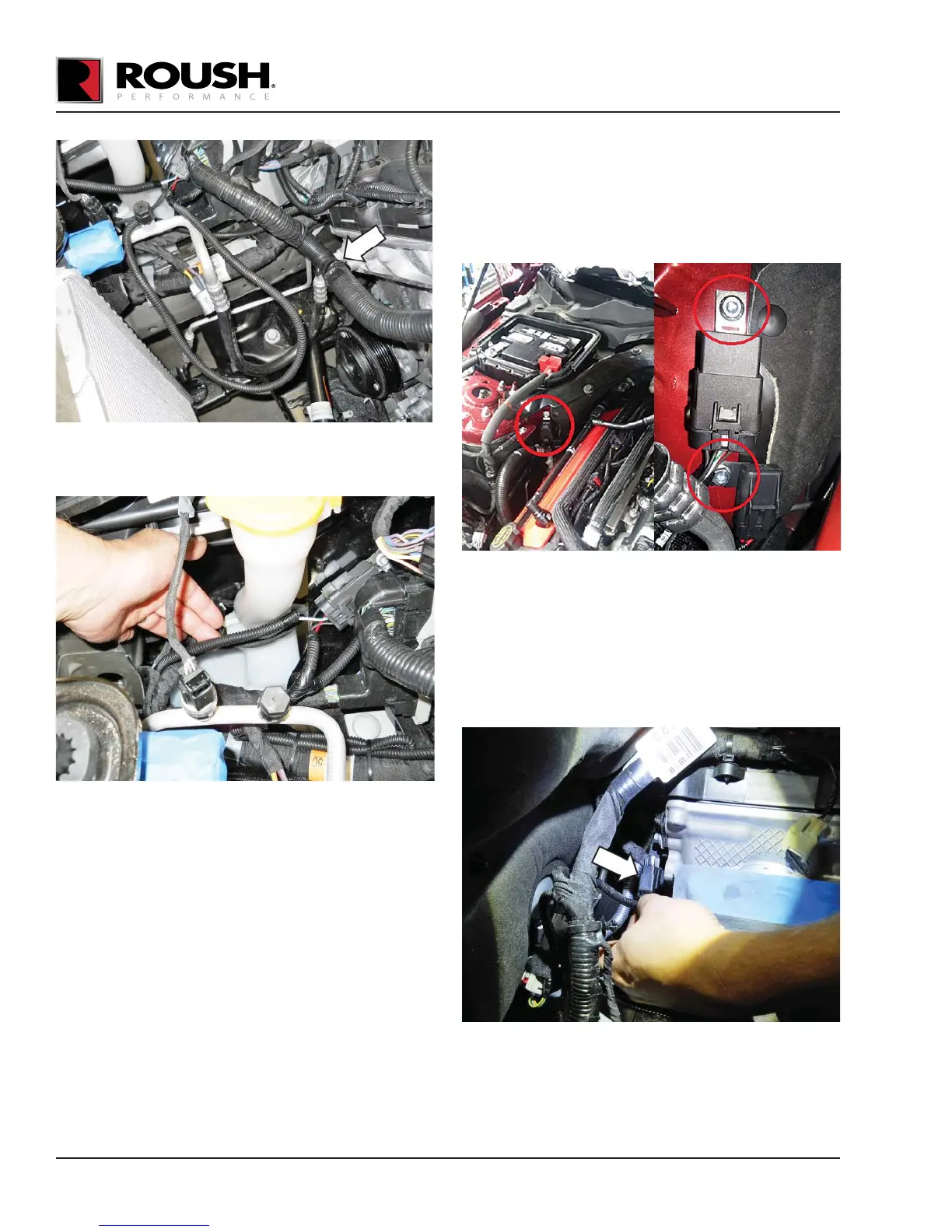

9. Route the intercooler pump wire harness over the
top and in front of the wiper washer bottle. Secure
it in place with zip ties as necessary.
10. Zip tie the excess harness out of the way and
secure it to a safe location.
2017 Mustang
1. Install the relay and fuse from the intercooler
pump wiring harness (1315-8W501) to each stud
protruding from the battery box. Put the relay on
the upper stud, and the fuse on the lower stud as
shown.
2. Apply blue Loctite (or equivalent) to two (2) M6
nuts (W520412) and secure to the studs.
3. Torque to 5-10 Nm.
4. Lay the intercooler pump wire harness along the
engine harness, in back of the cylinder head to
the drivers side inboard cylinder head. Disconnect
the radio capacitor and plug the intercooler pump
harness in line with this connector.
