ROUSH 422011 - Install Intake Manifold Bolts and Harness Clips; Route Manifold Hose and Connect ACT Sensor; Install Fuel Rail and Injectors into Manifold

2015-2017 5.0L Mustang Phase 1/2 RHD ROUSHcharger Kit
SECTION D – INSTALLATION
1316-RHD-AA 12152016 55 800.59.ROUSH

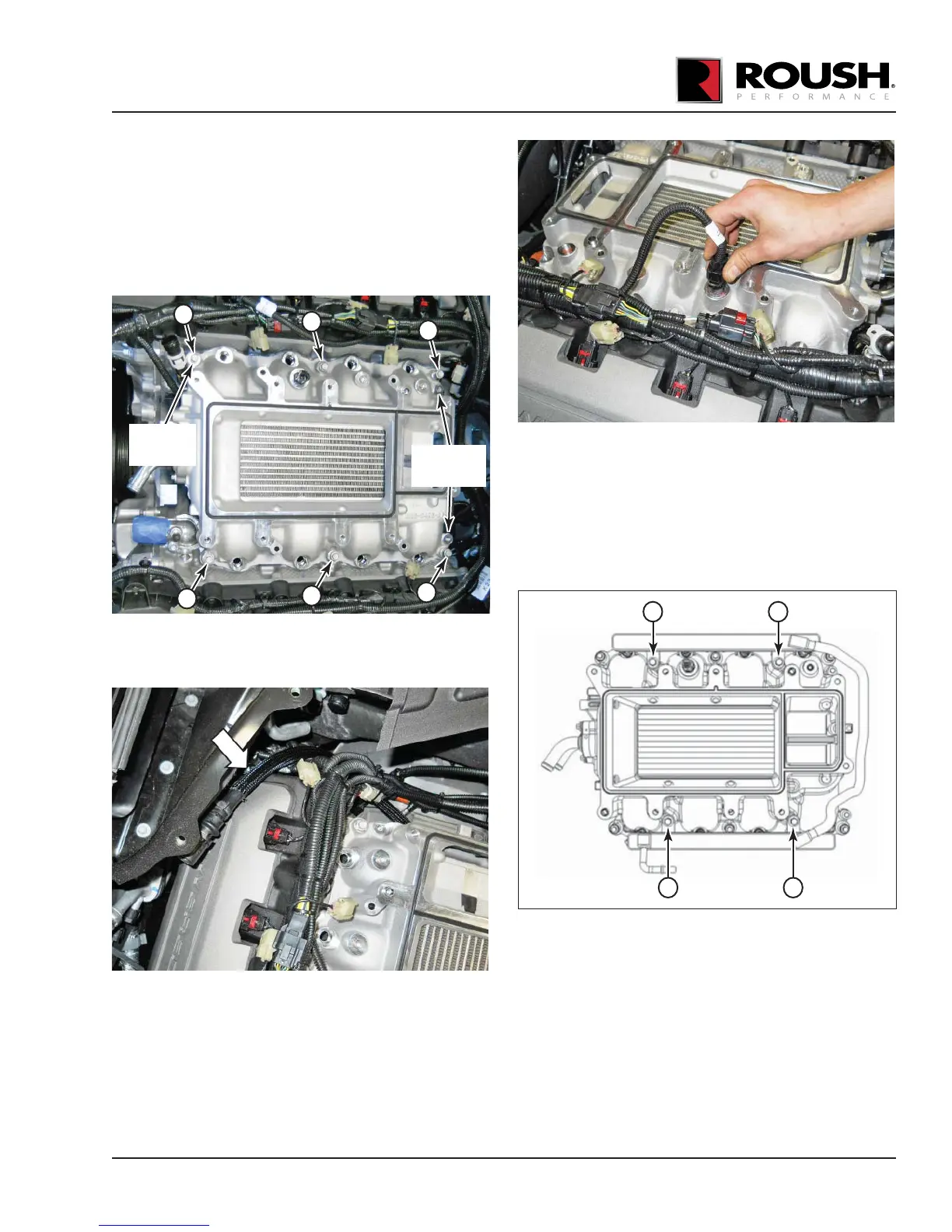

4. Install the other  ve (5) M6 x 1.0 x 40 mm
bolts (R18020004) found in Hardware Kit B
(1315-TVSHKB) in the positions shown. Tighten
the fasteners in two stages with the sequence
shown. Stage 1; torque bolts to 10 Nm. Stage 2;
tighten bolts an additional 45 degrees. Reinstall
the engine wiring harness retention clips at the
rear of the intake manifold.
GROUND
WIRE
UNDER #5
WIRING
RETAINERS
HERE
5
1
3
4
2
6
5. Check that the hose in back of the intake manifold
is routed around the electrical harness and
towards the RH cam cover.
6. Connect the ACT sensor from ACT harness
(1315-12A690) to the intake manifold.
7. Lube the lower fuel injector O-rings with
assembly lube. Install the fuel rail and injectors
into the intake manifold. Be sure each injector is
properly seated into the intake manifold. Install
the previously removed fuel rail mounting bolts.
Tighten the fasteners in two stages with the
sequence shown. Stage 1; torque bolts to 10 Nm.
Stage 2; tighten bolts an additional 45 degrees.
1 3
2 4
