ROUSH 422011 - Connect Fuel Injector Connectors; Place and Seat Supercharger Assembly; Install Supercharger Mounting Bolts

2015-2017 5.0L Mustang Phase 1/2 RHD ROUSHcharger Kit
SECTION D – INSTALLATION
1316-RHD-AA 12152016 56 800.59.ROUSH

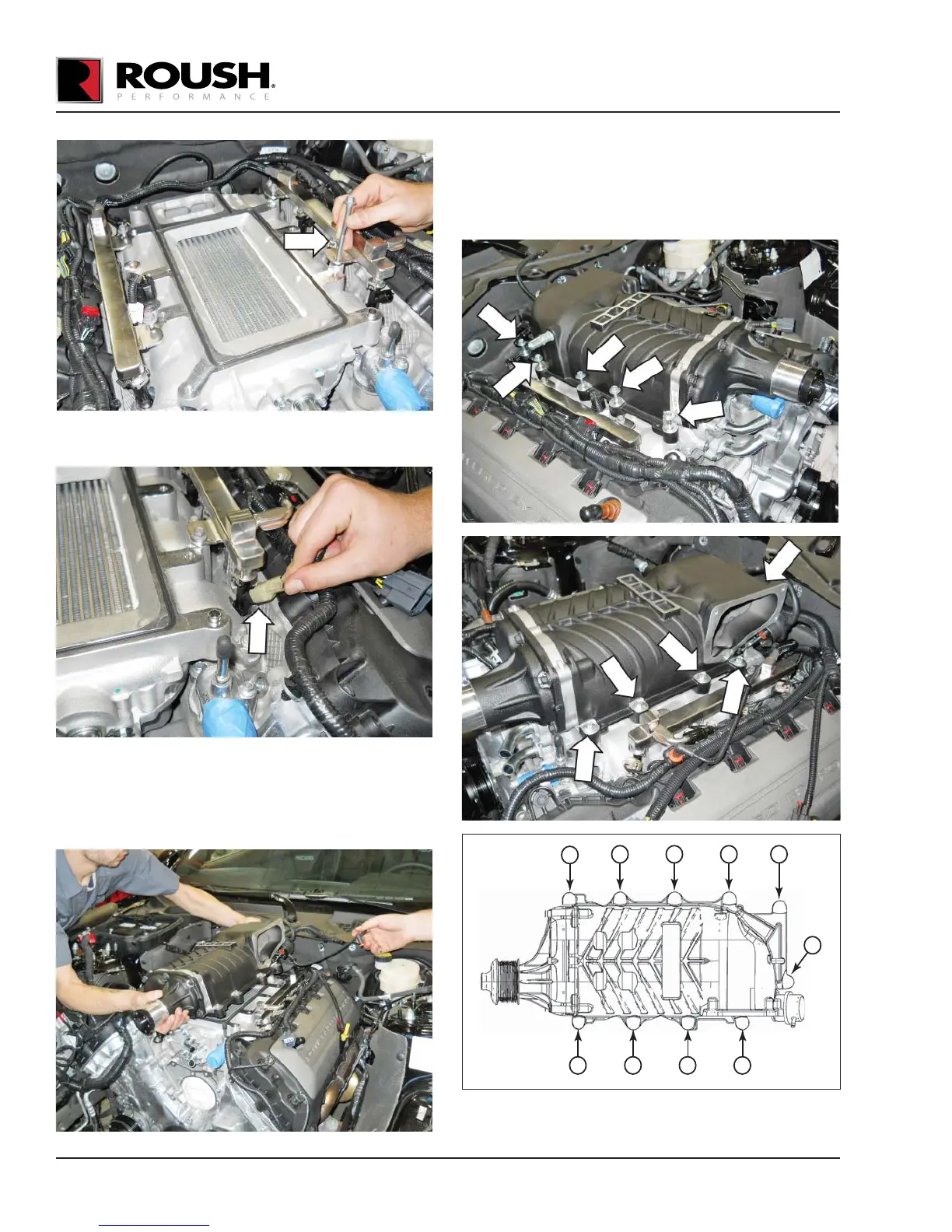

8. Connect the eight (8) fuel injector electrical
connectors.
9. Carefully place the supercharger assembly (1315-
6F066) on top of the intake manifold. Ensure that
the supercharger is fully seated on the intake
mounting dowels. Remove protective shipping
covers.
10. Install the ten (10) M8 x 1.25 x 53 fasteners
(N808130) provided found in Hardware Kit B
(1315-TVSHKB) into the mounting holes. Torque
fasteners to 25 Nm in the sequence shown
(10 mm socket).
7
4 1 5
6328
9
10
