2015-2017 5.0L Mustang Phase 1/2 RHD ROUSHcharger Kit
SECTION D – INSTALLATION
1316-RHD-AA 12152016 57 800.59.ROUSH

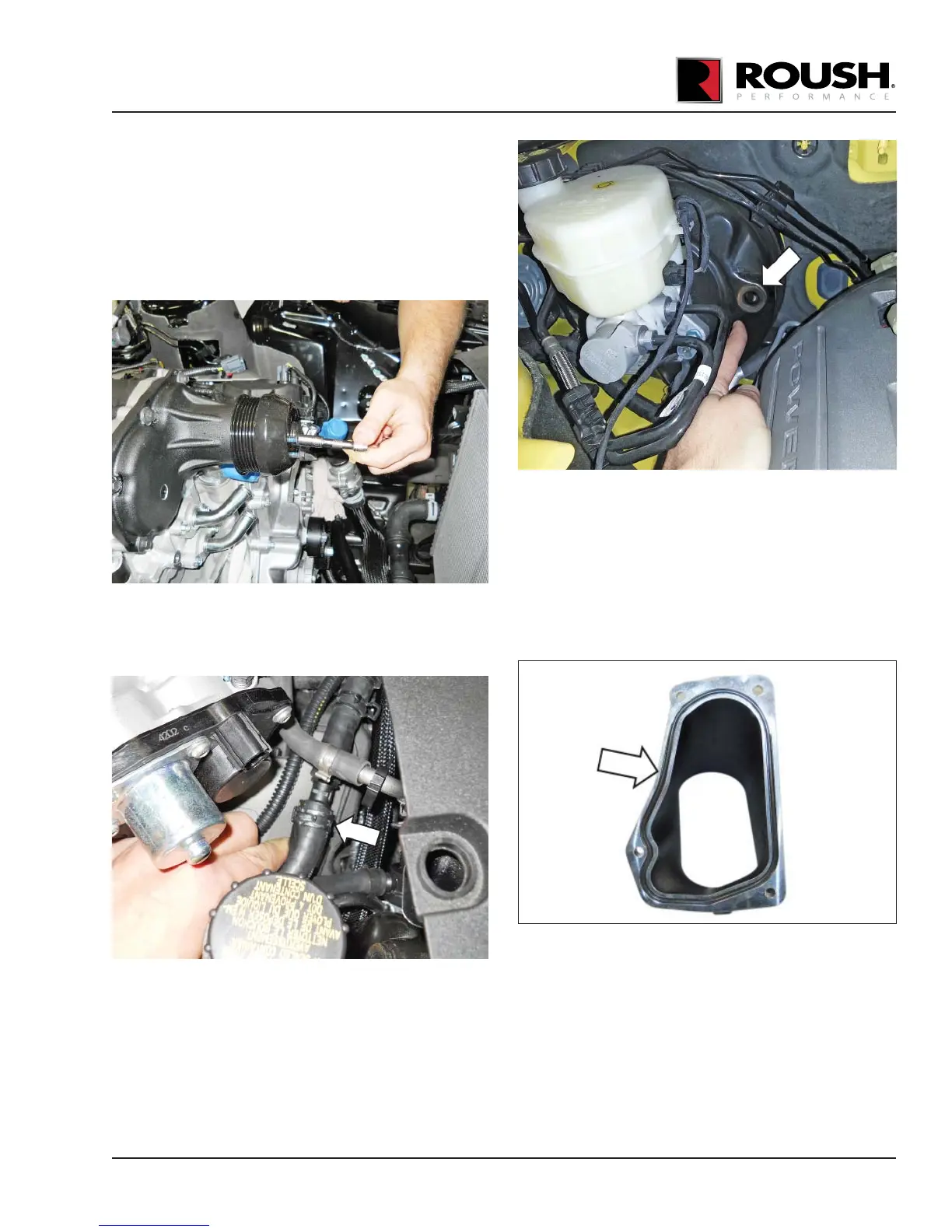

11. Install the 85 mm supercharger pulley (1313-6K85)
onto the hub of the supercharger using the six (6)
M6 x 16 bolts (W500013) found in Hardware Kit
B (1315-TVSHKB). Apply a small amount of blue
thread locking compound to each bolt and torque
to 8-12 Nm.
HINT: You may need to torque the supercharger
pulley bolts once the FEAD belt is installed.
12. Install the brake aspirator hose assembly.
Connect the hose (with 1/2" barbed tting) from
the supercharger to the 1/2" brake line and secure
it with the attached clamp.
13. Connect the check valve on the brake vacuum
and aspirator assembly to the brake booster.
14. Inspect the installation of the brake boost vacuum
and aspirator assembly in the vehicle to ensure
there are no pinched hoses and the convolute is
positioned to prevent hose abrasion from other
components.
15. Install the spacer-to-supercharger gasket (1315-
9E152) found in Hardware Kit B (1315-TVSHKB)
on the throttle body spacer (1315-9P697) as
shown.
16. Install the spacer-to-throttle body gasket
(R07060153-13) found in Hardware Kit B
(1315-TVSHKB) as shown.
