Monitoring the Wireless Bridge Status
2. Review the following table for descriptions of what each field represents:

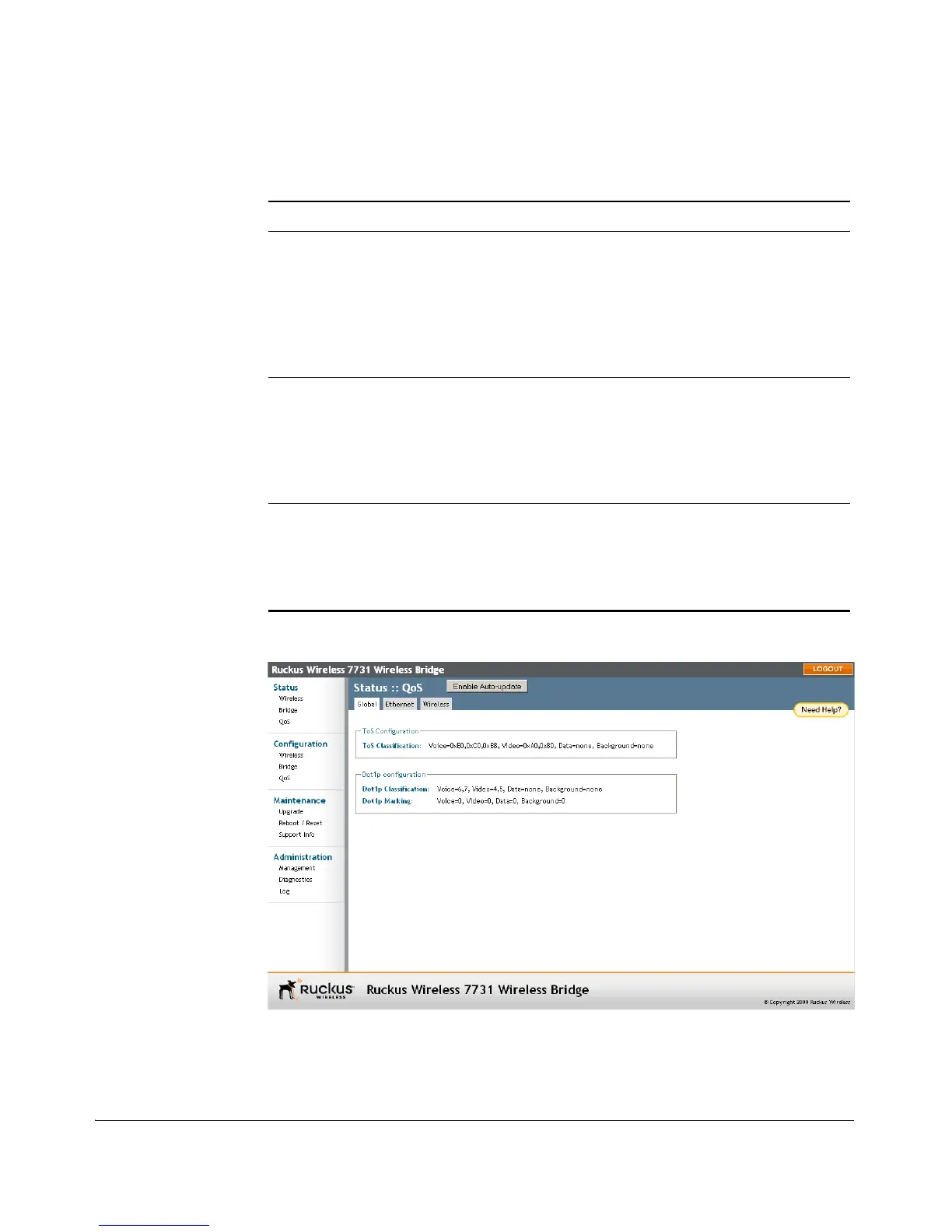

Figure 53. Monitoring global QoS status
Table 10. Meanings of QoS Parameters
Item Description Meaning
ToS Classification Shows the rules for
classifying packets to
WMM categories
based on ToS values,
as set on the
Configuration > QoS
page.
ToS (Type of Service) is a field in the IP
header used to define the traffic type
as the packet ingresses an interface.
Dot1p Classification Shows the rules for
classifying packets
based on Dot1p
values, as set on the
Configuration > QoS
page.
Dot1p is a field in the VLAN header
used to indicate the priority of this
VLAN-tagged packet.
Dot1p Marking Shows the VLAN IDs
for which Dot1p
marking will be
performed.
The reverse of Dot1p Classification,
Dot1p Marking is used to assign the
Dot1p value on the VLAN-tagged
packets based on priority queue
values.
