VDR-100G2/G2S Operation User Manual 2
RUT-UM-02-002_Rev. 2.0
Optionally, the VDR-100G2 can also be supplied with the following components:
1. 2 or 4 additional audio channels (to a maximum of 16 inputs)
2. 1, 2, or 3 additional video channels (to a maximum of 4)
3. 8 or 16 NMEA channels
4. Remote Storage Module (RSM) (implemented for long term archiving and/or additional data
backup storage retrieval)
5. Data Interfaces (implemented for the conversion of non-standard signals to NMEA format).
Interfaces include:
DataAnalog
DataDiscrete
DataSynchro
DataGyro
DataProtocol
UNIT
ACQUISITION
DATA
UNIT
PROCESSING
DATA

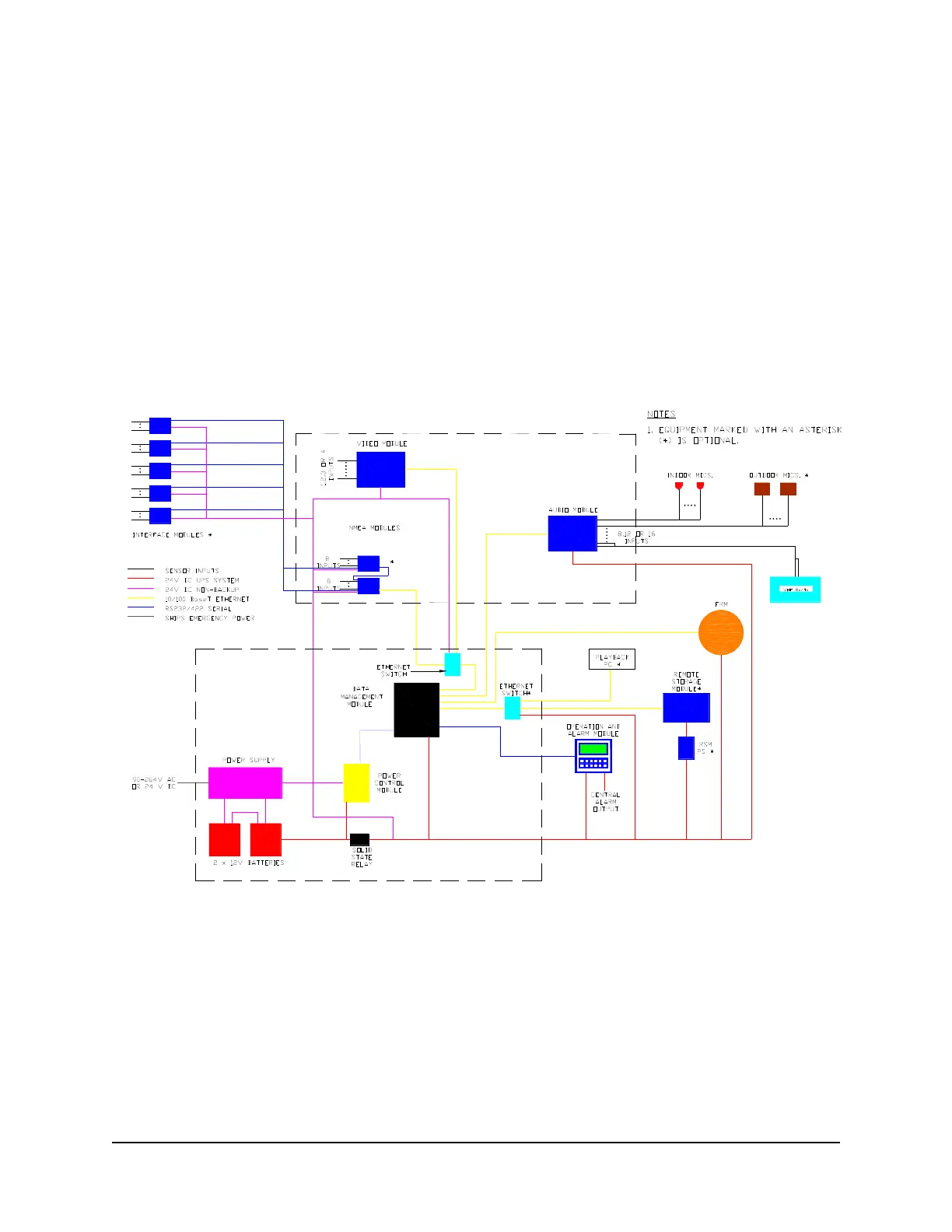

Figure 1-1 - VDR-100G2 Block Diagram
The VDR-100G2S has many similar components to the VDR-100G2, with the following differences:
The Video Module is only required if the vessel’s radar has an available COTS (commercial off-
the-shelf) interface. Therefore, the recording of video data may not be applicable in some VDR-
100G2S installations.
The VDR-100G2S has an accompanying Simplified FRM (SFRM) capsule.
