VDR-100G2/G2S Operation User Manual 13
RUT-UM-02-002_Rev. 2.0

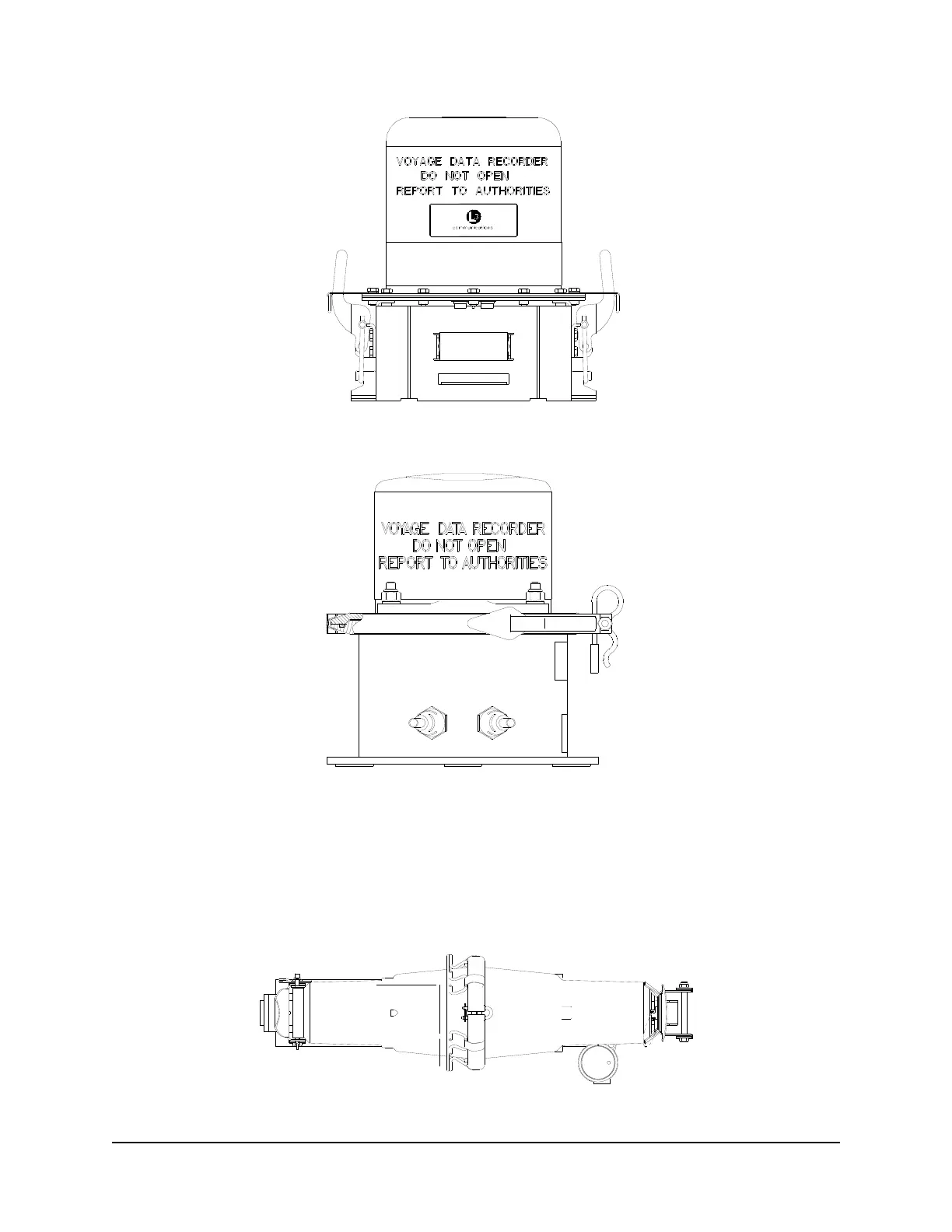

Figure 1-14 - L3 SVR-01 Fixed SFRM Capsule
Figure 1-15 - L3 SVR-02 Fixed SFRM Capsule
1.1.7.3 JoTron Float-Free SFRM Capsule
The JoTron Float-Free SFRM Capsule is a combined SFRM and Cospas-Sarsat EPIRB (Emergency
Positioning Indicating Radio Beacon), approved for use with the VDR-100G2S. The capsule contains a
memory module with a standard 1.75GB storage capacity and 10Mb Ethernet with TCP/IP interface. The
capsule will store 12 hours of captured data. In a situation where a ship may be sinking, the capsule will
float free while transmitting both its position and MMSI for at least seven (7) days.
Figure 1-16 - Jotron Float-Free SFRM Capsule
