4.2.3 Download Secured Data Set
Complete the following steps to download one (1) of multiple secured data sets from the DMM’s internal
hard drive:
1. Select ‘Download Secured Dataset’ from the ‘Download Controls’ menu.
2. A download progress window will appear indicating that the application is receiving information
from the DMM.
3. In the subsequent ‘Download Secured Datasets’ window, all available secured datasets will be
visible. Each dataset shows the date it was initially secured, file size, and start and end time.

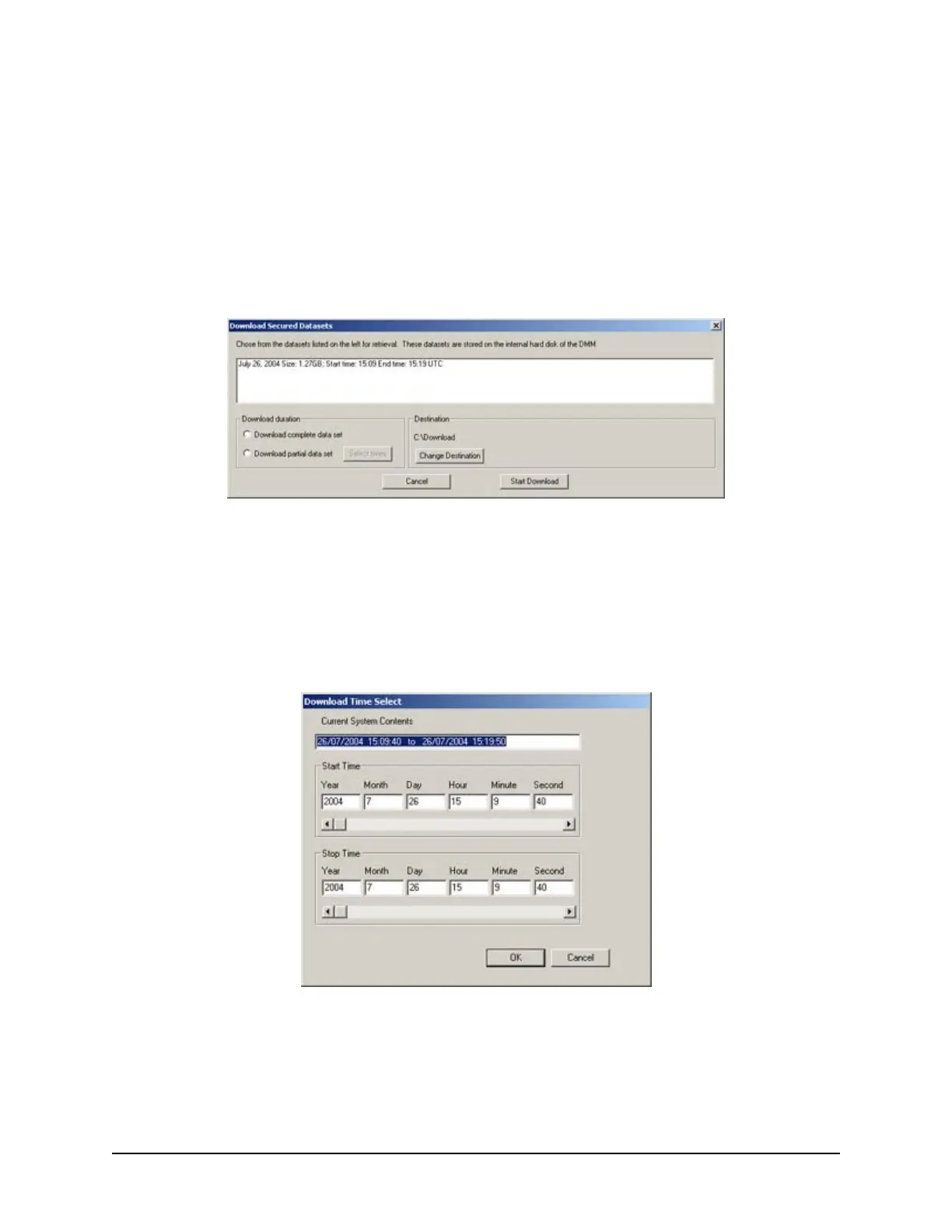

Figure 4-6 - Download Secured Datasets
4. Select the appropriate dataset from the list.
5. To download a complete dataset, choose the “Download complete data set” radio button under
‘Download duration’. To download a partial dataset, choose “Download partial data set”.
6. If choosing to download a partial dataset, a window will appear from which the time range to be
downloaded must be chosen. The associated scroll bar is used to select a start and/or end time
(the exact time may also be entered directly in to the time fields.)
Figure 4-7 - Partial Download Window
7. To choose a directory to which the datasets will be downloaded, other than the one listed under
‘Destination’, press the “Change Destination” button and follow standard Windows procedure for
selecting a desired directory.
8. Once the duration and destination are correct, press ‘Start Download’.
