1.1.7.4 Rutter-ACR Float-Free SFRM Capsule
The Rutte
r-ACR Float-Free SFRM Capsule contains 4GB of non-volatile memory (Flash), intended to
store ship parameters in real time. The storage memory will continually store the last 12 hours (minimum)
of received data.
The interface between the VDR-100G2S and the memory capsule is a standard 10/100 Base-T Ethernet
connection using TCP/IP standard protocol. Power for the capsule is provided over the same Ethernet
cable using PoE (Power Over Ethernet). This feature has the advantage in that a separate power cable
is not required.
Much like a black box on an airplane, in an emergency your float free 406 memory capsule will store the
last 12 hours of the ship’s critical and navigational data to be retrieved and reviewed to assist in
explaining the cause of the accident.

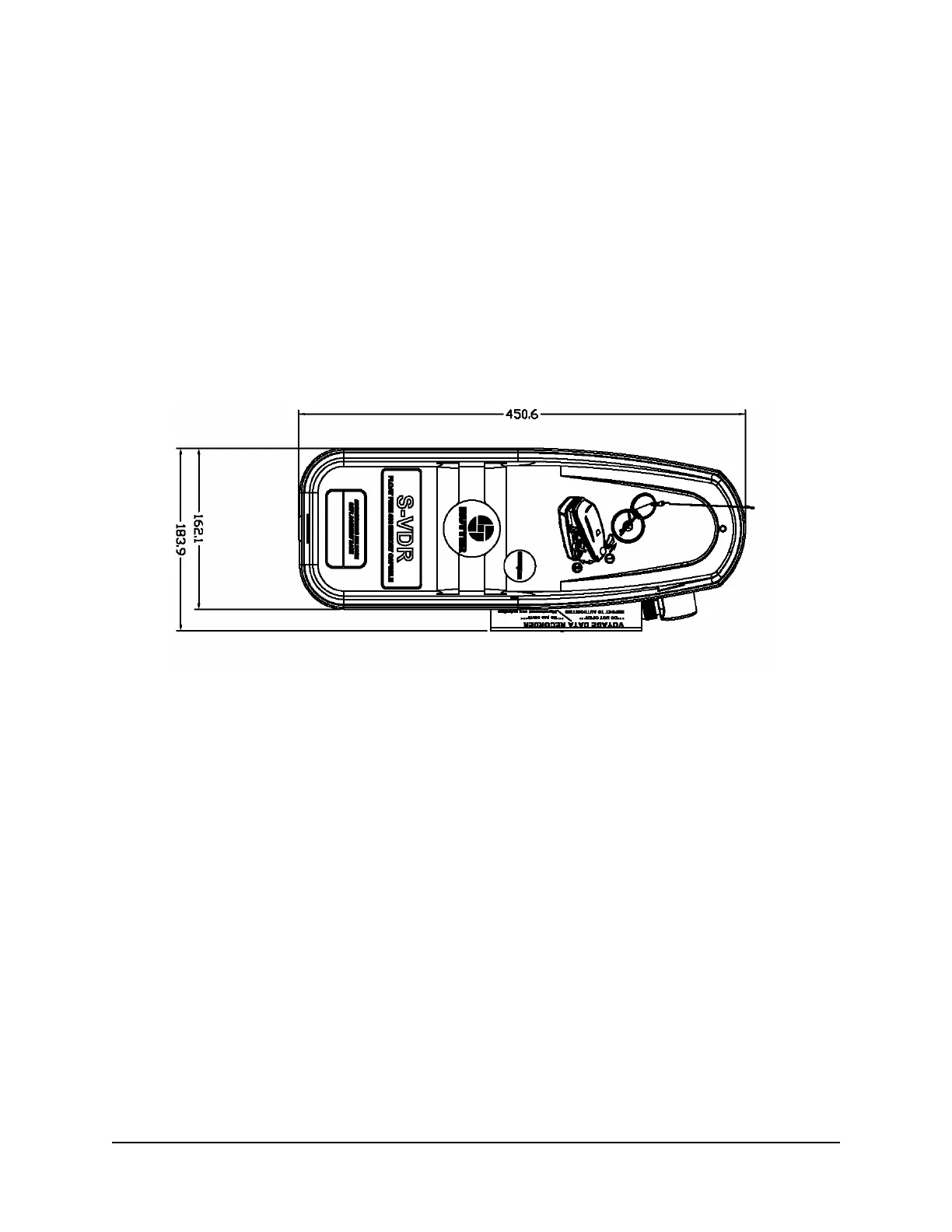

Figure 1-17 - Rutter-ACR Float-Free SFRM Capsule
