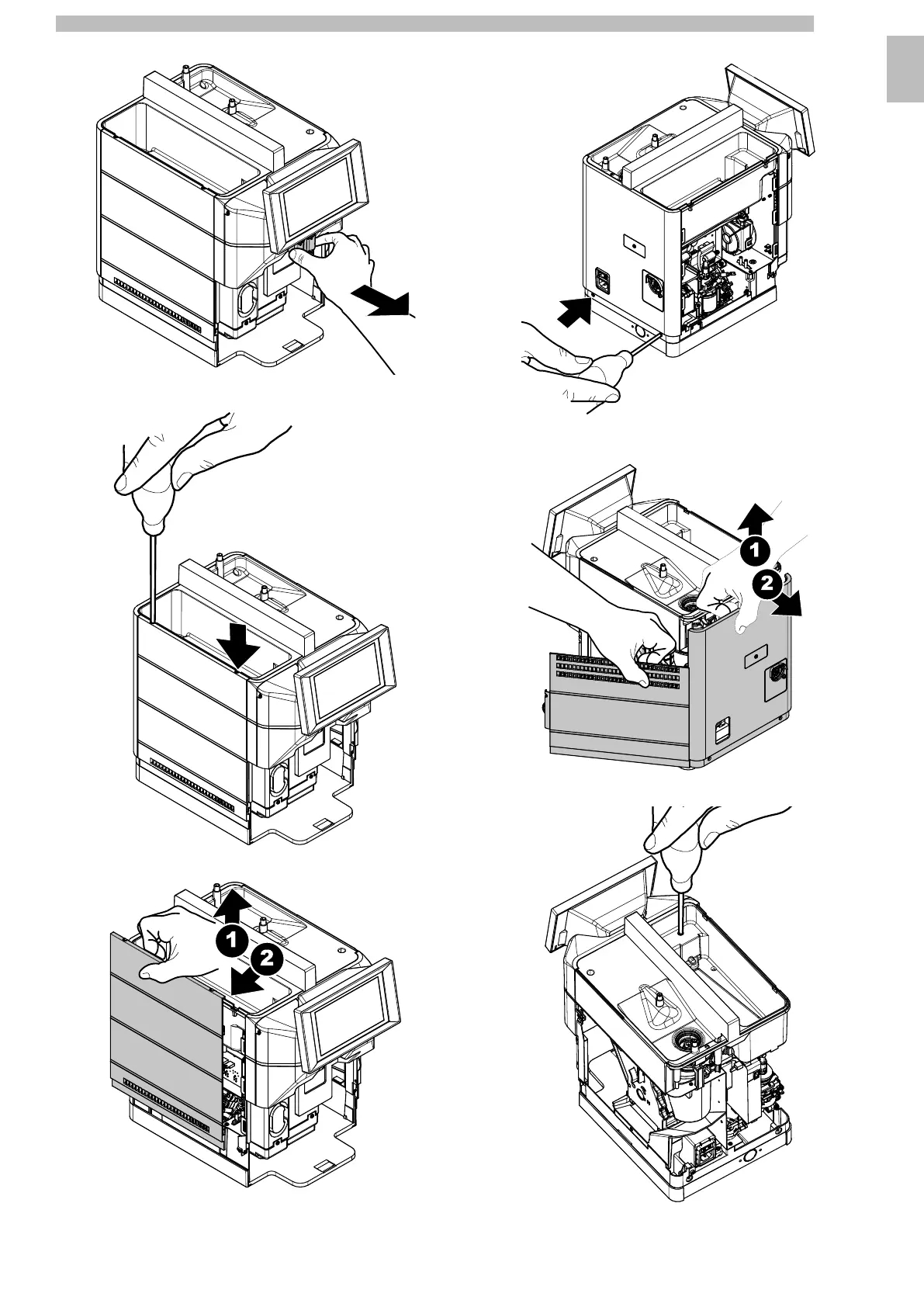

Remove the coffee dispenser container unit.
15151515
Remove the 2 screws shown in figure using a Torx T10 screwdriver.
15151515
Lift and pull the left side outwards.
15151515
Remove the 2 screws shown in figure using a Torx T10 screwdriver.
15151515
Removetherearpanelandsidedoorbyliftingandpullingtherearpaneloutwards.
Disconnect the fan power supply wiring.
15151515
Remove the screw shown in figure using a Torx T20 screwdriver.
15151515
