Saeco MAGIC M2 - Page 78

English
15
78

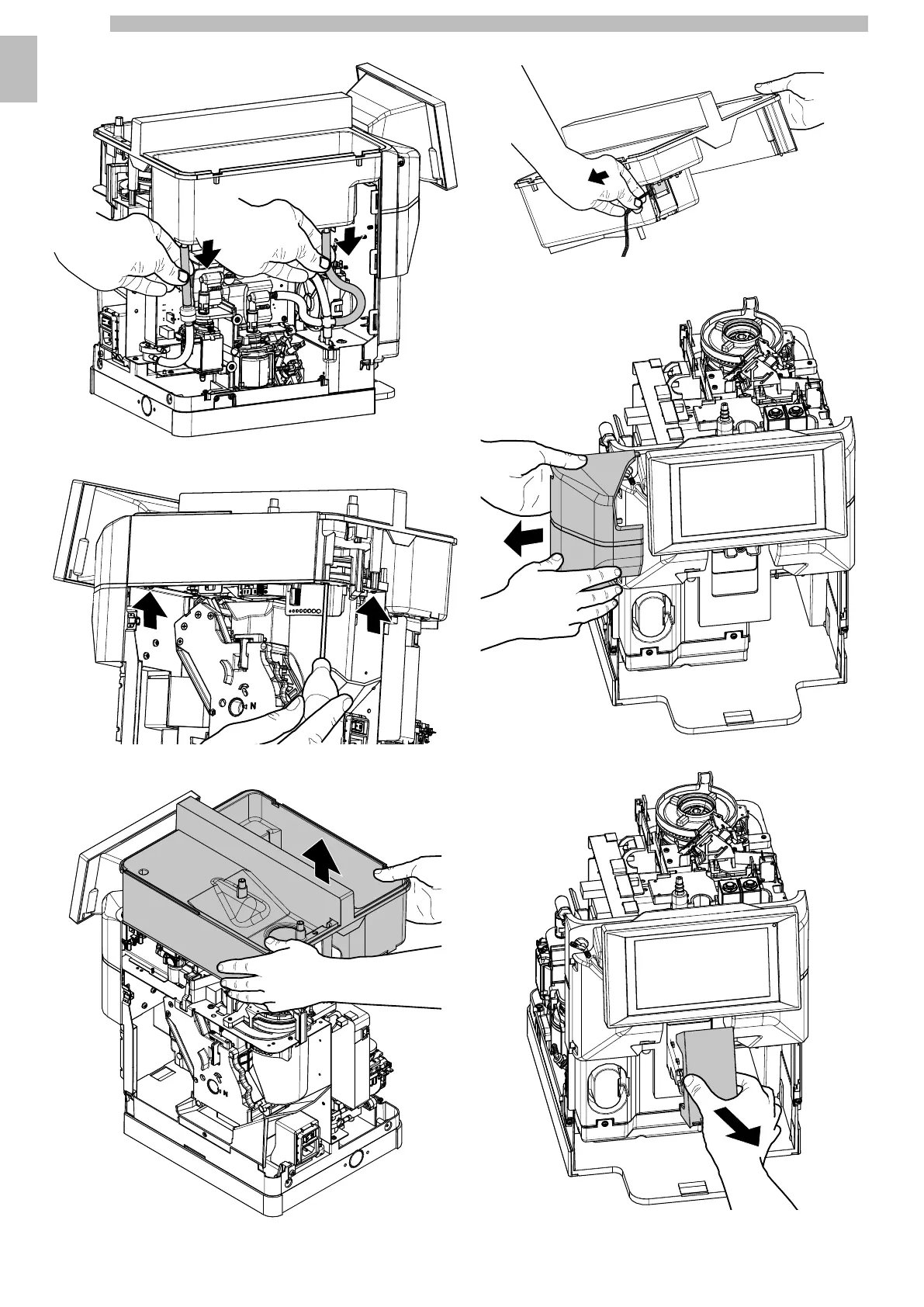

Disconnect the 2 silicone pipes shown in the figure.
15151515
Remove the 3 screws shown in figure using a Torx T10 screwdriver.
15151515
Remove the upper cover.
15151515
Disconnect the w. harness of water level sensor.
15151515
Remove the milk tube cover.
15151515
Lower the dispenser. Remove the milk column cover.
15151515
