Saeco MAGIC M2 - Page 80

English
15
80

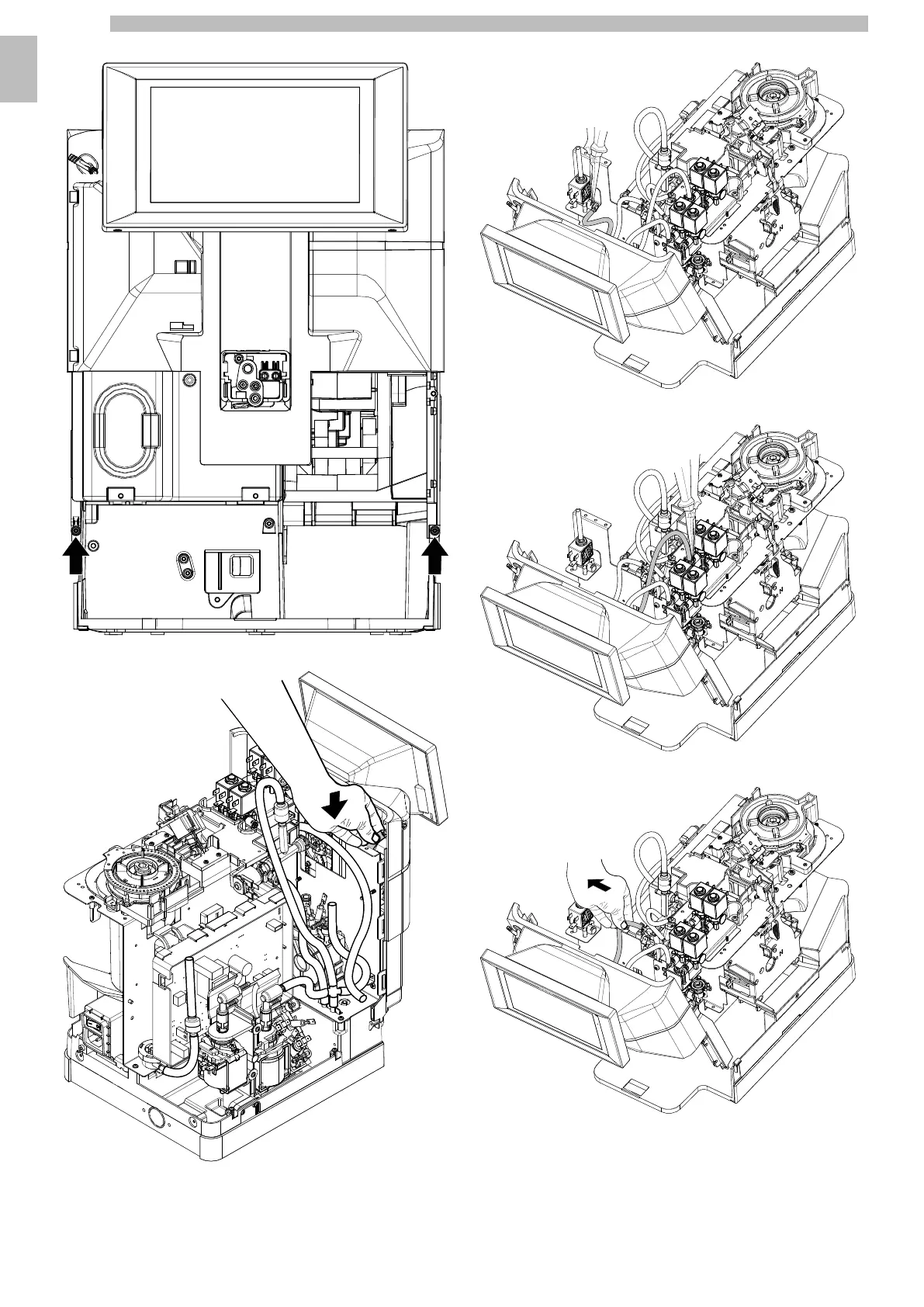

Remove the 2 screws shown in figure using a Torx T10 screwdriver.
15151515
Disconnect the tube as indicated in the picture
15151515
Using the long nose pliers disconnect the pipe indicated in the picture.
15151515
Using the long nose pliers disconnect the steam pipe as indicated in the picture.
15151515
Disconnect the coffee wand as shown in the figure.
15151515
