Saeco MAGIC M2 - Page 81

English
15
81

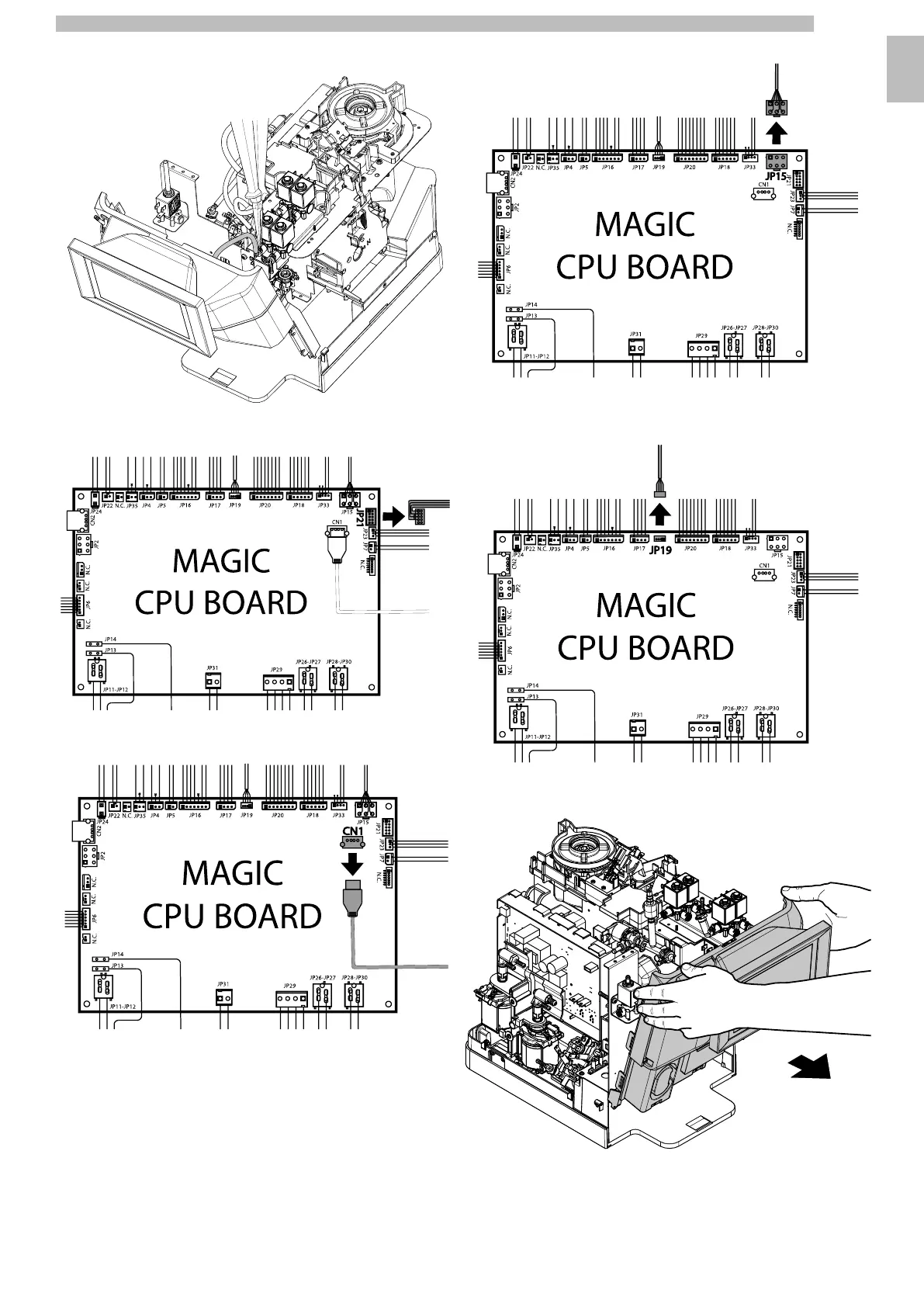

Using the long nose pliers disconnect the hot water pipe as indicated in the picture.
1515151515
Disconnect the LED wiring from the CPU board (JP21 connector).
1515151515
Disconnect the USB wiring of the tablet from the CPU board (CN1 connector).
1515151515
Disconnect the tablet power supply wiring from the CPU board (JP15 connector).
1515151515
Disconnectthew.harnessofCappuccinatoredetect.sensorfromtheCPUboard
(connector JP19).
1515151515
Remove the front panel.
1515151515
