with the enclosed self-bonding tape, disabling water from pene-
trating the connection.
3.3.1.3 Mounting
The TT-3005M maritime antenna is constructed for 1” tube
mounting.

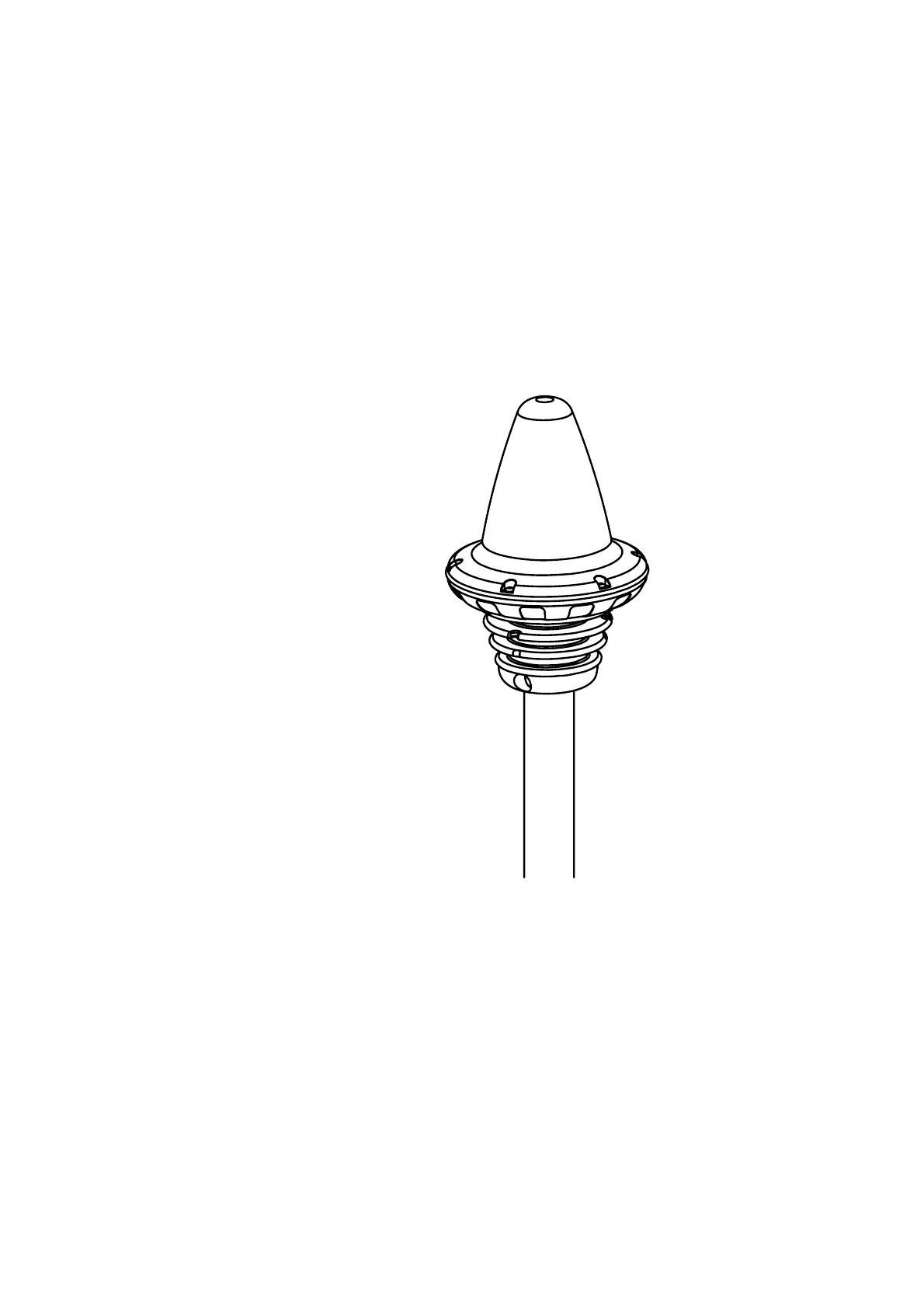

Figure 6 TT-3005M 1’’ Tube Mounting
It is important to notice that the pole mount device has to be dis-
connected from the antenna body when the antenna cable should
be mounted. It is not possible to mount the cable without disman-
tling the pole mount.
