3.3.2.3 Mounting
The TT-3005A maritime antenna is constructed for 1.5” tube
mounting.

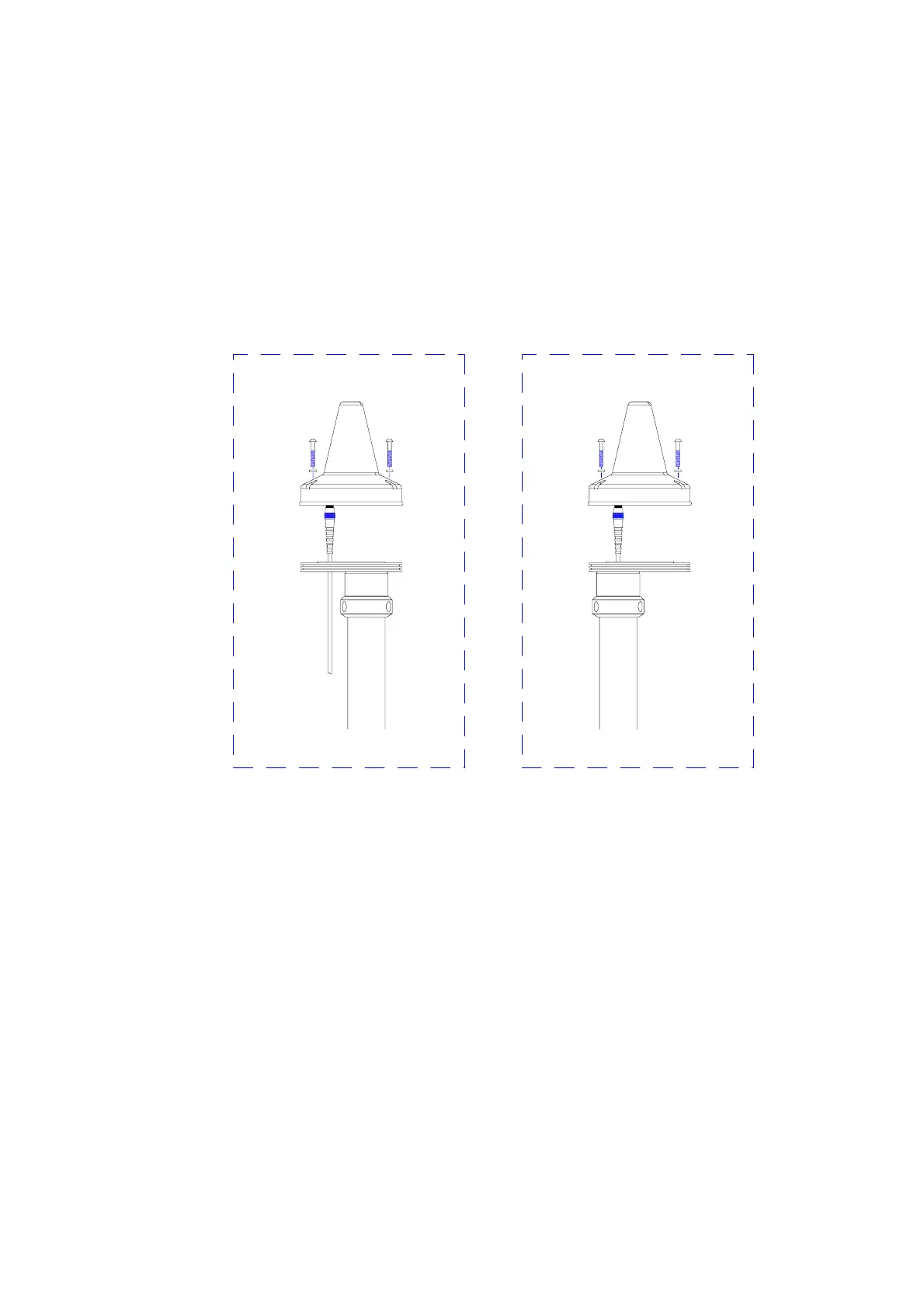

Figure 8 TT-3005A 1.5’’ tube mounting
3.3.2.4 Low antenna power in Rx mode
The TT-3005A Antenna Rx power can be reduced from 1.1W with
(14V) to 0.7W with (9V).
For information on how to reduce the antenna power, please refer
to section 4.2.3.
