3.6 TT-3608A Hard Copy Printer

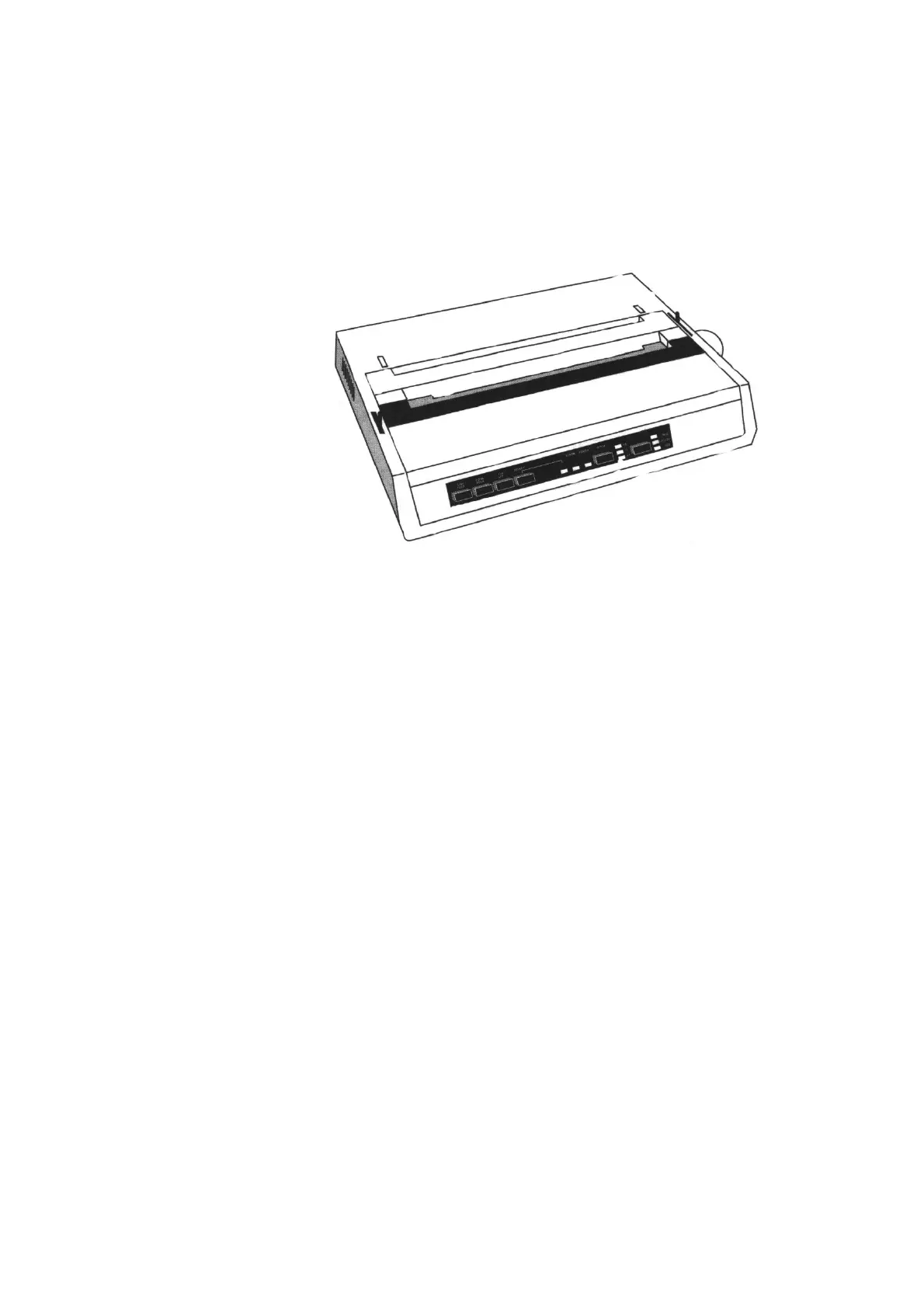

Figure 19 TT-3608A Hard copy printer
Connecting the TT-3608A Hard Copy Printer to the Transceiver
offers the highest security for hard copies of incoming messages
even if the TT-3606E is turned off.
The Integrated Capsat System is designed to allow the operator
to guide incoming messages to the TT-3608A Hard Copy Printer
and/or the TT-3606E Message Terminal for floppy disk storage.
In case both TT-3608A and TT-3606E are turned off, the Trans-
ceiver will hold the incoming messages in the internal memory
for at approximately 48 hours for later Hard Coping.
The enclosed standard cable allows the printer to be located up
to 1.5 meters from the Transceiver.
A special low-impedance cable is available for printer locations
up to 20 meters from Transceiver.
The TT-3608A Hard Copy Printer is supplied with a mounting
frame, offering horizontally oriented secured mounting.
