3.4 TT-3606E Message Terminal
The TT-3606E is a GMDSS approved Message Terminal for the TT-
3020C Transceiver.

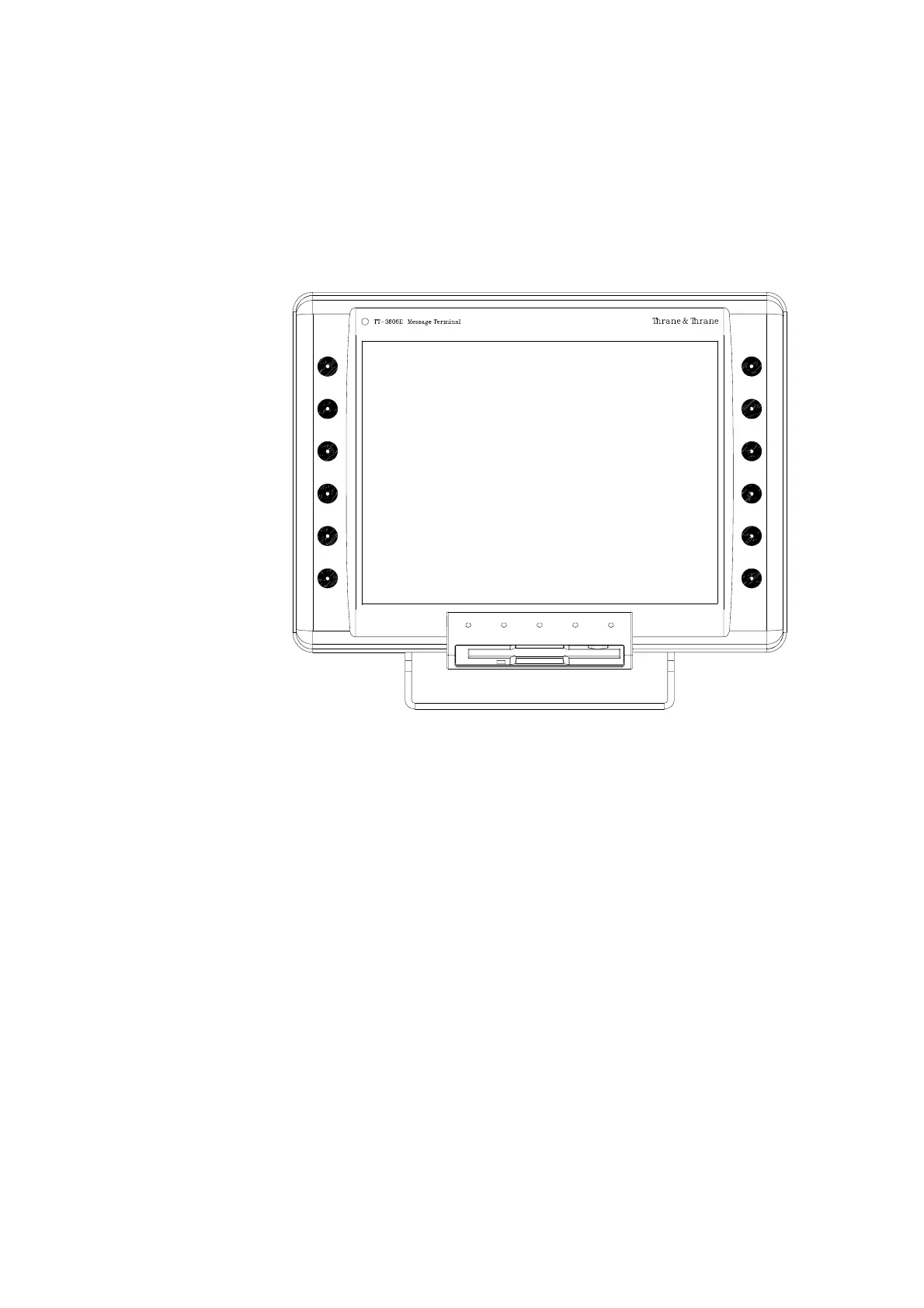

Figure 13 TT-3606E Message Terminal
In the following sections the interface to the 3606E Message Ter-
minal are described.
Please be advised that a special Reference Manual for the
TT-3606E Message Terminal is available.
3.4.1 Connectors
An illustration of the rear connectors is in Figure 14.
