2.5 Connectors
This section defines the functions and pin assignments of the TT-
3020C connectors.

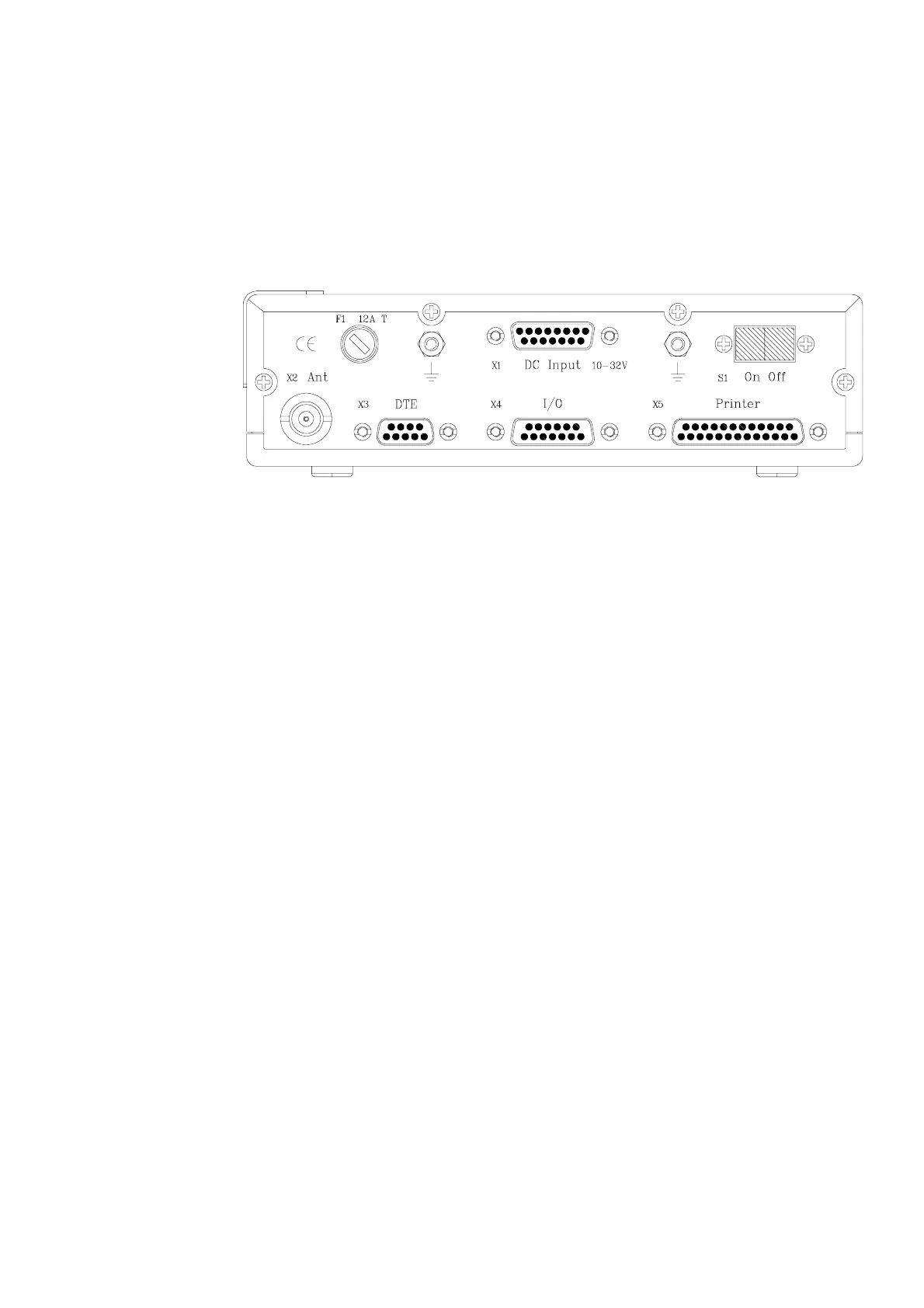

Figure 2TT-3020C Capsat Transceiver rear panel
2.5.1 Power connector
The battery connector is a standard DB-15 male, located on the
rear panel of the TT-3020C at X1.
Regardless whether the unit is designed to work on floating DC or
modified to match your DC requirements the pin assignment of
the DC/Battery power connector and DC cable matches the de-
scription given in Table 5.
