3.8 TT-3042C Remote Alarm/Distress
Box (optional)
The TT-3042C Remote Alarm/Distress Box is connected to the TT-
3020C by means of the Transceivers X4 I/O connector, through
which it is also powered.

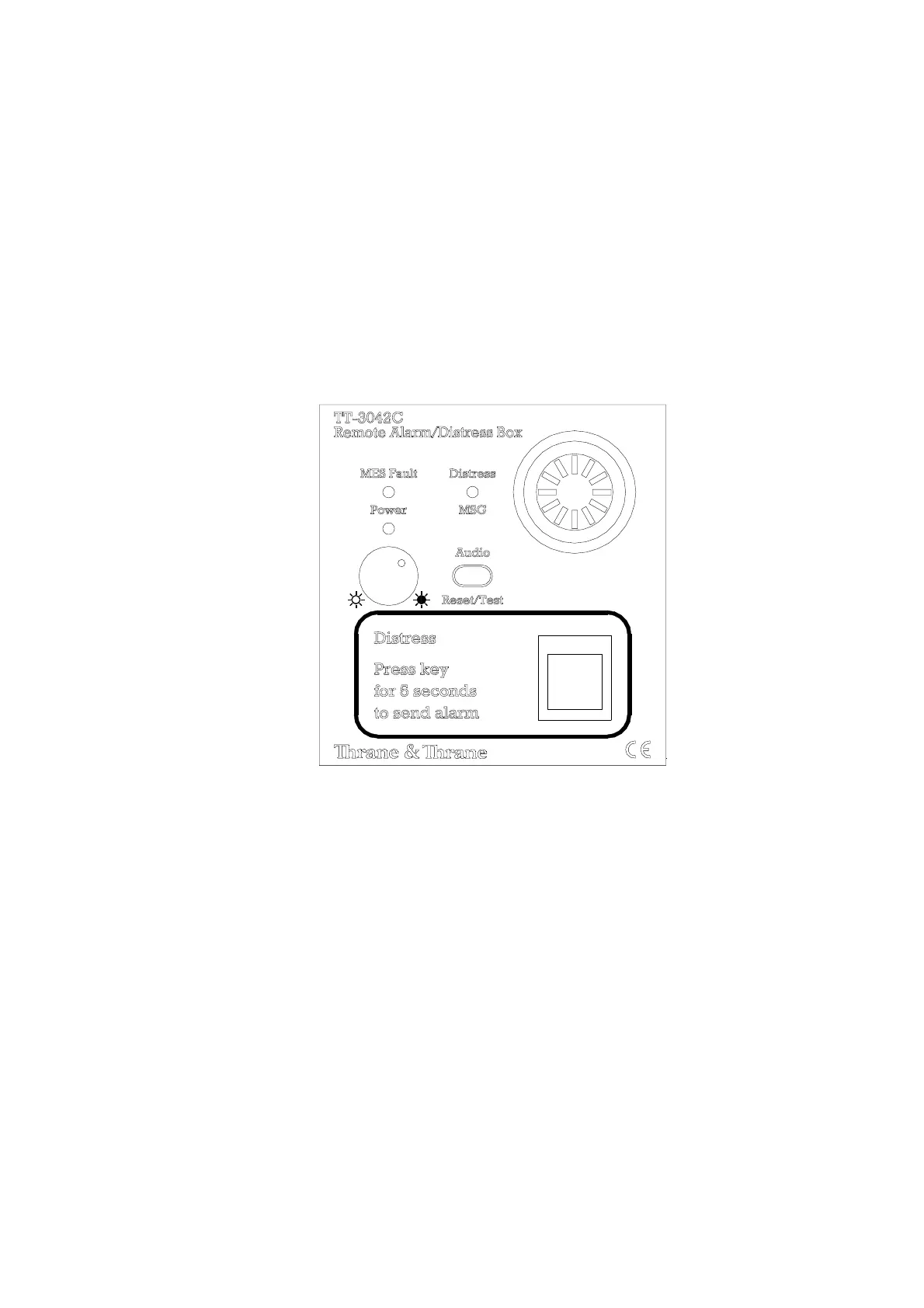

Figure 23 TT-3042C Remote Alarm/Distress Box
From the Remote Alarm/Distress Box TT-3042C Distress Alerts
can be initiated. The TT-3042C also has an indicator for reception
of EGC messages with distress/urgent priority. A Distress Alert
can be initiated by pressing the Distress button for five seconds.
Included in the box is a Distress Relay, which makes it possible to
control an external alarm panel. The function of the relay can be
selected by setting two internal jumpers according to the specifi-
cations in Table 28 TT-3042C Technical Specifications. In case
jumper W1 is set to enable the Distress Relay, it will be activated
by an initiation of a distress alert and upon a reception of a mes-
sage with distress priority.
Document Nr: I-MA-3010.68-5510-762-IVT-312
