The printer connector is located on the rear panel. The interface
conforms to a standard Centronics type interface found on most
personal computers today.
3.6.1 Mounting plate
A mounting plate is supplied with the TT-3608A Hard Copy
Printer, for horizontally oriented secured mounting see section
3.6.3.
3.6.2 Roll Paper Stand

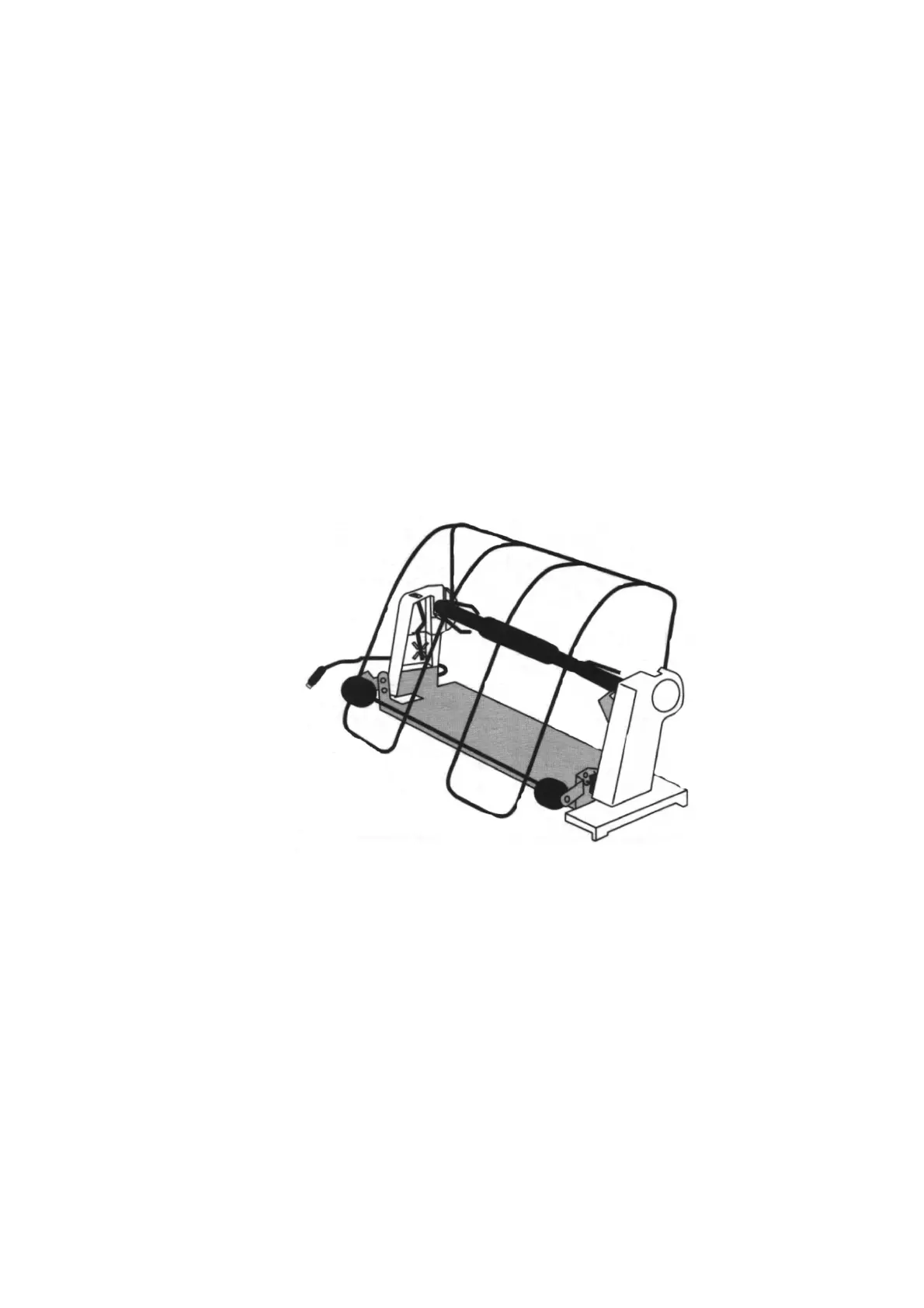

Figure 20 TT-3608A Paper Roll Stand
A roll paper stand is available for the TT-3608A Hard Copy
Printer. This enables the printer to signal an advanced warning of
a paper low condition, when the paper roll is almost empty. The
printer continues to print the job, but an information is given by
the transceiver and a "Printer almost out of paper" message is
displayed by the message terminal. When "Printer almost out of
paper" condition occurs the audio alarm in the transceiver will
sound and the FAULT LED on any Remote Alarm/Distress Box will
