TT-3042C Remote Alarm/Distress Box (optional)
TT-3042C Remote Alarm/Distress Box (optional)TT-3042C Remote Alarm/Distress Box (optional)
TT-3042C Remote Alarm/Distress Box (optional) System Installation
System InstallationSystem Installation
System Installation
25-Jul-00
25-Jul-0025-Jul-00
25-Jul-00 Page
PagePage
Page 3-47
3-473-47
3-47

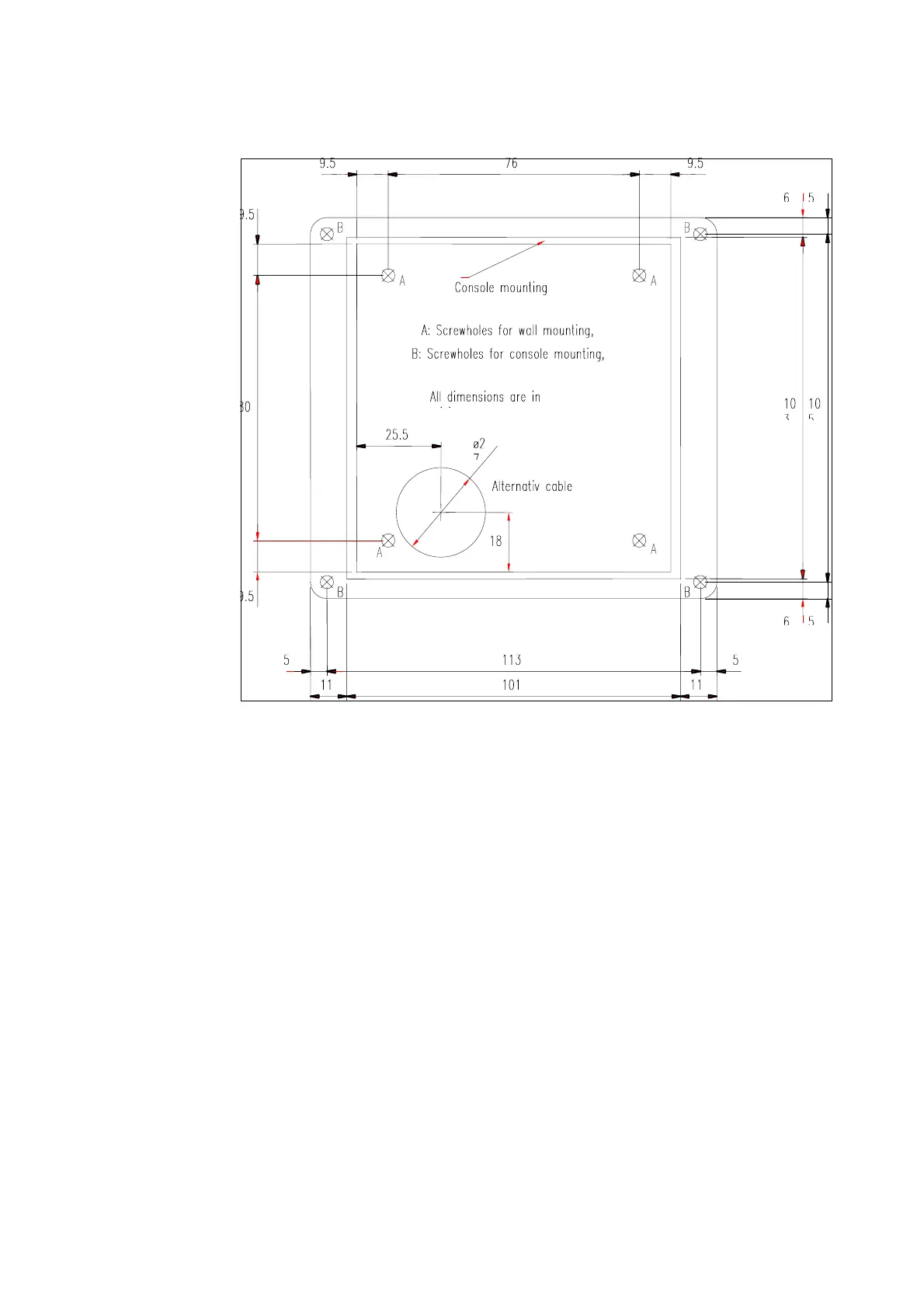

Figure 26 TT-3042C Mounting stencil.
Fasten the TT-3042C Remote Alarm/Distress Box from the inside
or by using the mounting bracket, which makes console mounting
possible.
If required, the cable relief are easily moved from the end of the
TT-3042C to the bottom feed hole for hidden cable installation.
It is possible to connect 2 TT-3042C’s in parallel to the TT-3020C
Capsat Transceiver, from which they are supplied with power and
control signals in one cable. The used cable has to be in compli-
ance with the specifications in Table 28 TT-3042C Technical
Specifications.
