8000B Series

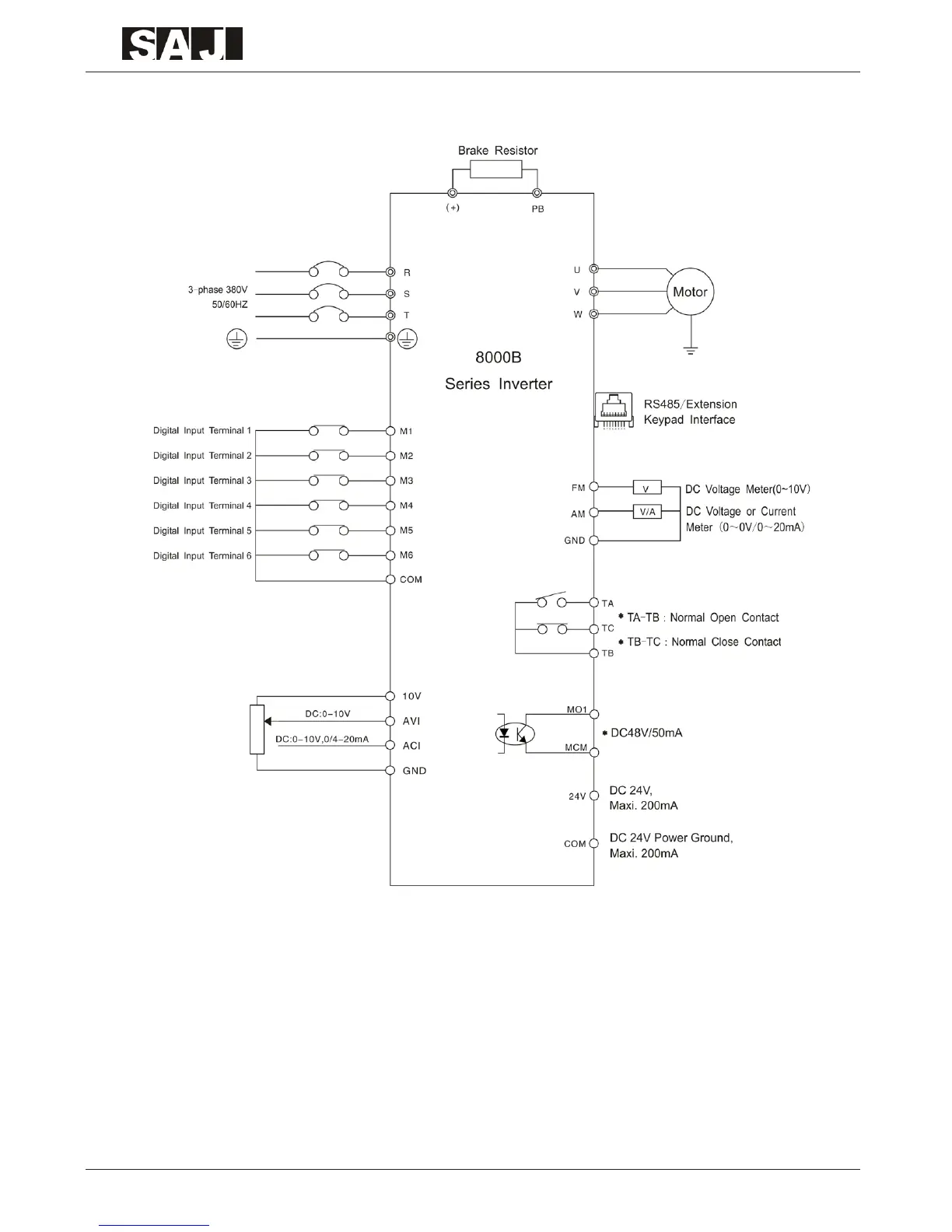

3.1.2 Wiring Diagram of 4kW~7.5kW (model G) (3-phase,380V)
Note:
1.
◎
refers to terminals of main circuit;
○
refers to terminals of control circuit.
2. 4kW~7.5kW (model G) : brake unit is standard part inside.
