8000B Series
4.1.3 Indicator Light Description
Indicator Light Name Description
RUN Light on: inverter running status.
STOP Light on: inverter stops or malfunction status.
FWD
Lights of FWD and RUN are on at the same time: inverter
forward running status.
REV
Lights of REV and RUN are on at the same time: inverter
reversely running status.
4.2 Operation Process
4.2.1 Parameter Setting
Three levels of menu are as following:
·Function code group (rst-class)
·Function code (second-class)
·Setting parameter of function code (third-class)
Remarks:
Pressing PRGM or ENT can return to the second-class menu from the third-
class menu. The difference is: Pressing ENT will save the setting parameters
into control board, and return to the second-class menu with shifting to the
next function code automatically. While pressing PRGM will directly return to
the second-class menu without saving the parameters, and keep staying at
the current function code.
For example: change the parameter 00.50Hz of function code F1.01 into
05.00Hz as the following ow chart shows:

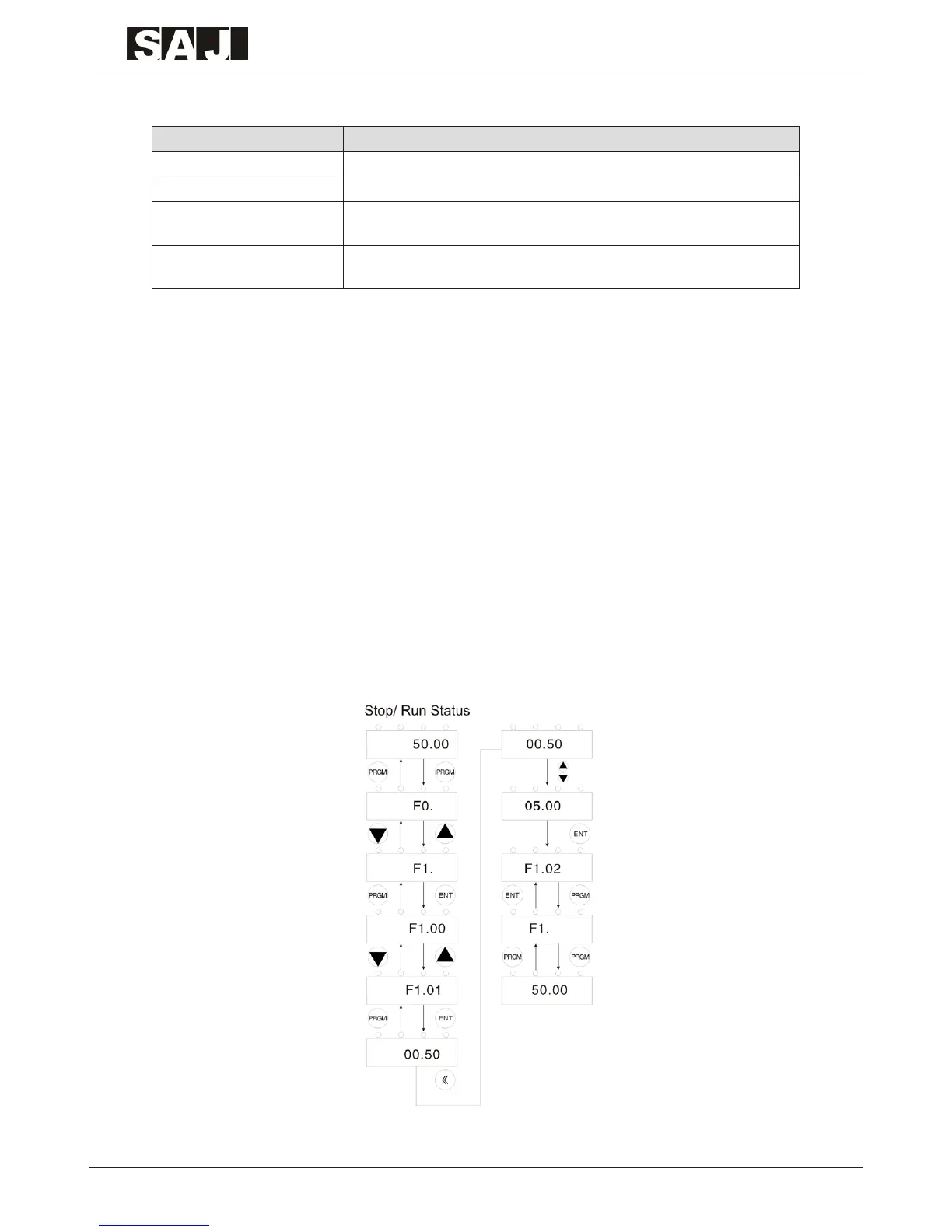

Flow Chart of Parameter Setting
