SAJ 8000B series User Manual

-
23
-
8000B Series
Chapter 3 Wiring

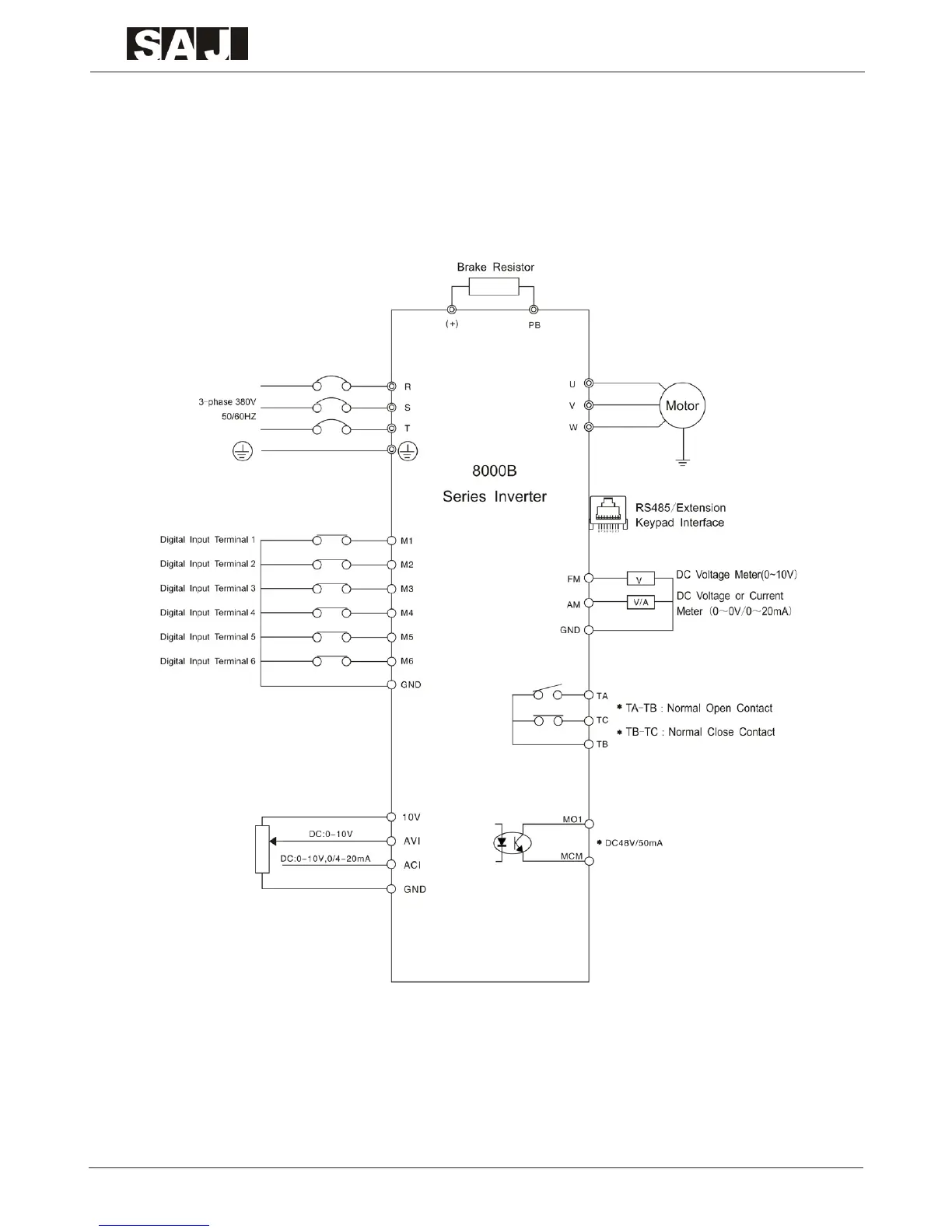

3.1 Standard Wiring Diagram
3.1.1 Wiring Diagram of 0.75kW~2.2kW (model G) (3-phase,380V)
Note:
1.
◎
refers to terminals of main circuit;
○
refers to terminals of control circuit.
2. 0.75kW~2.2kW (model G) : brake unit is standard part inside.
3. 0.75kW~2.2kW (model G) of single-phase/220V: main circuit terminals are
R and T.
