26
-
8000B Series

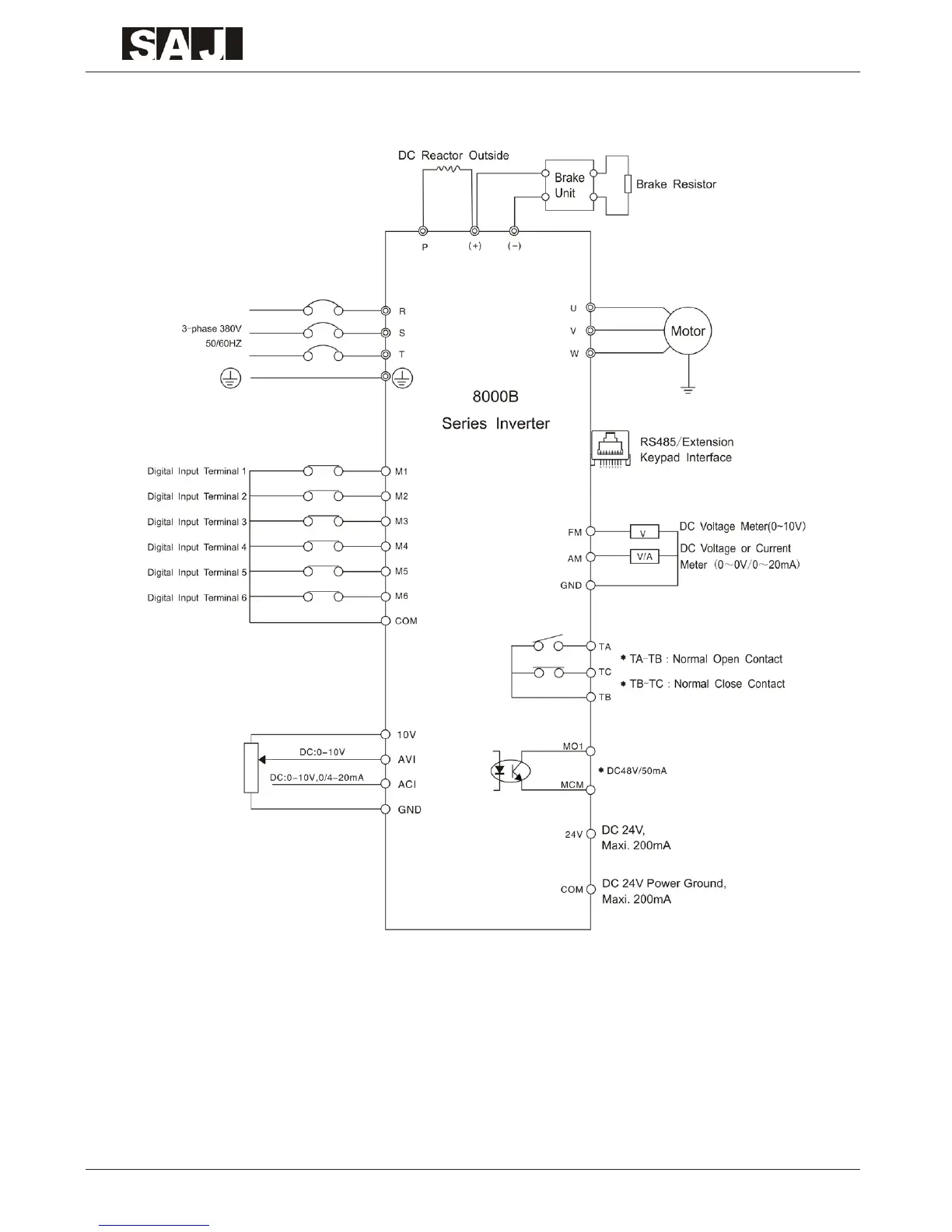

3.1.4 Wiring Diagram of 22kW~400kW (model G) (3-phase,380V)
Note:
1.
◎
refers to terminals of main circuit;
○
refers to terminals of control circuit.
2. 22kW~400kW (model G) : brake unit is additional part outside.
3. 22kW~400kW (model G) : DC reactor is additional part outside.
