Page 16 of 69

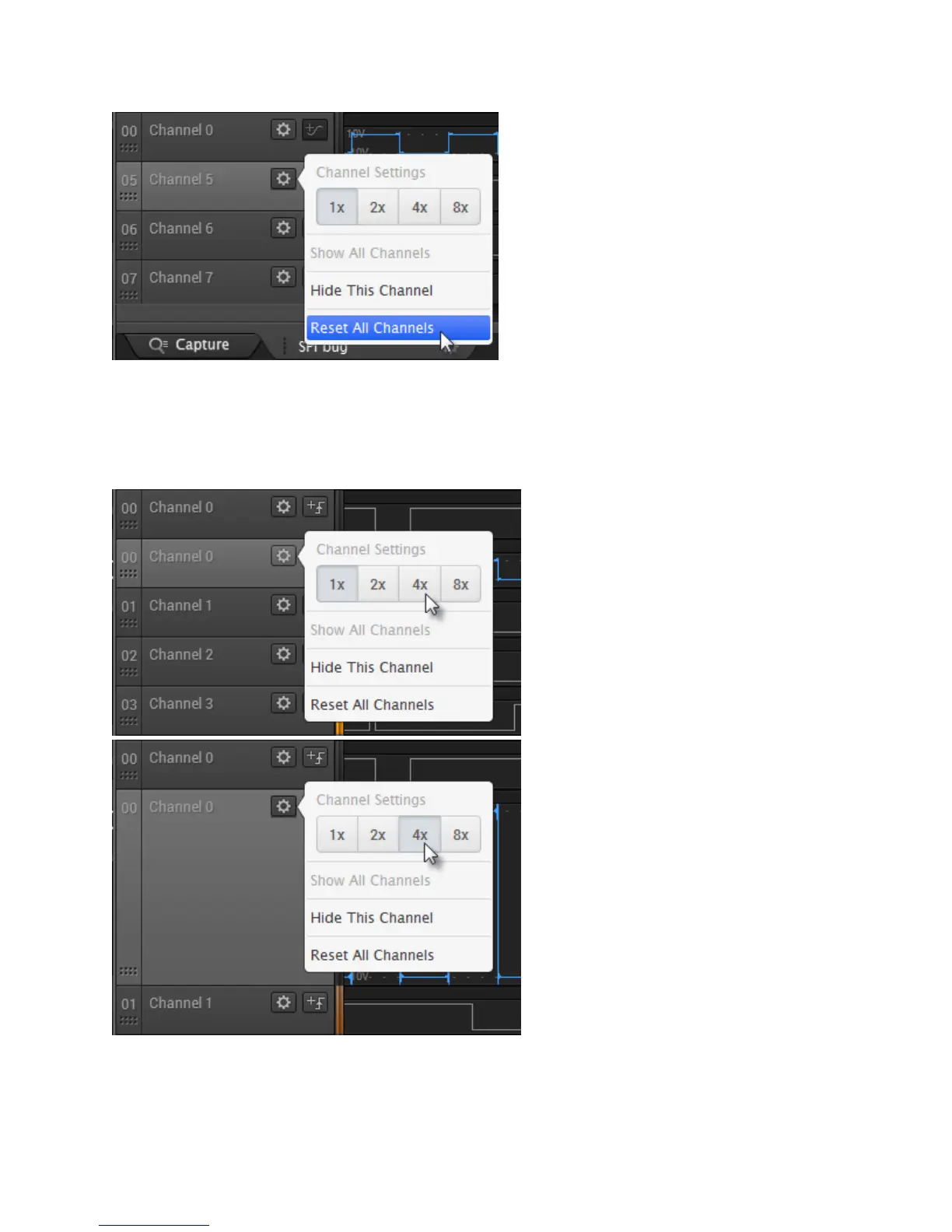

Changing Channel Size
To change the channel size, click the channel settings icon (gear) on the desired channel and select a
new size.
To change multiple channels to the same size, select them (control-click) and then set one of the selected
channel's size. All the selected channels will change their size.
