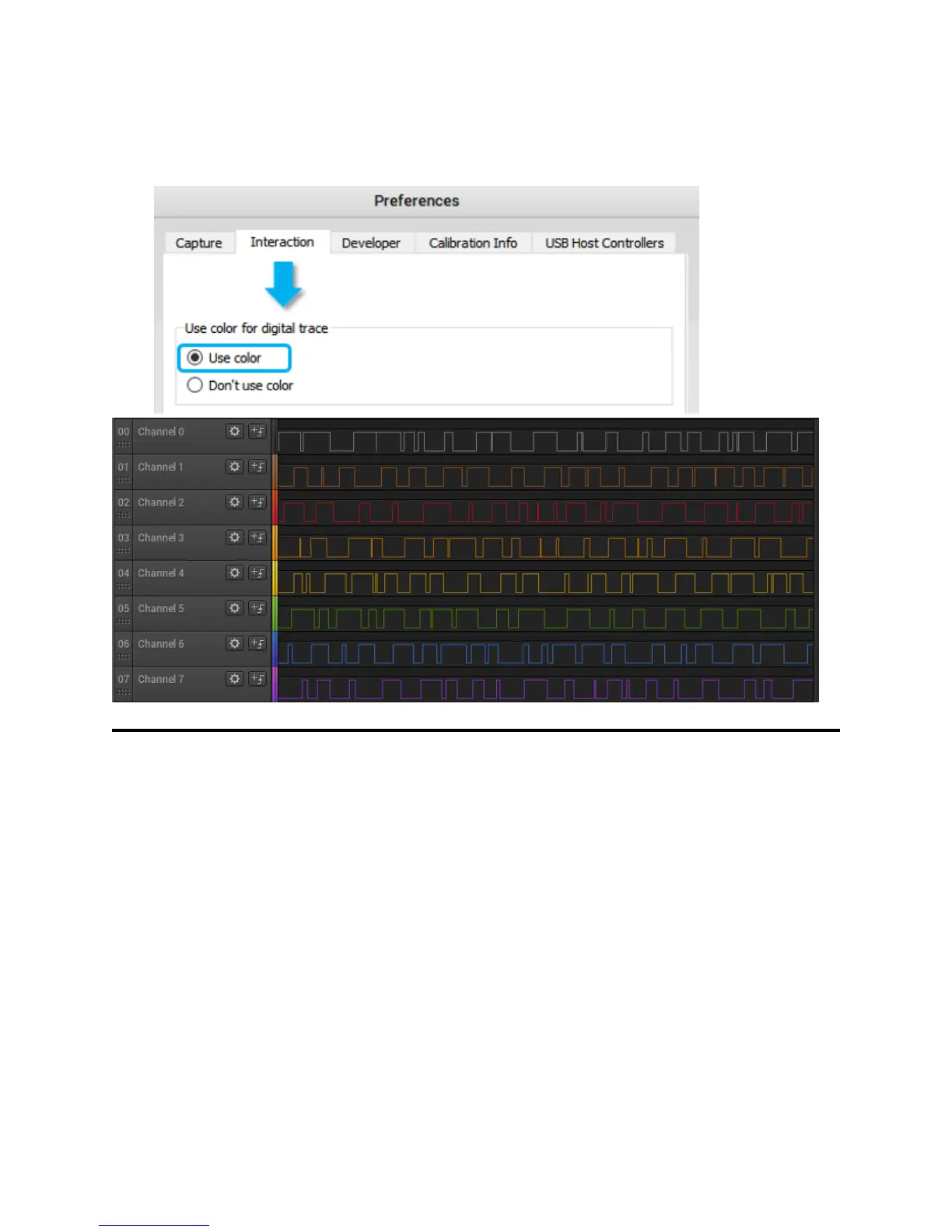

Digital Trace Colors
For easy of readability, the digital trace color can match the channel color. To set this, click Options ->
Preferences -> Interaction tab -> Use
color.
