Connector Dimensions
Below are several recommendations for integrating the Saleae devices into new designs.
1) Add 4x2 male headers to your PCB and use the Saleae accessory cable "Logic-to-2x4 Header (Gen
2)" to connect any of the current Saleae logic analyzers to your circuit. Accessories can be purchased
here.
The Gen 2 accessories are compatible with these devices:
• Logic 4
• Logic 8
• Logic Pro 8
• Logic Pro 16
The Gen 1 accessories are compatible with these devices:
• original Logic (discontinued)
• original Logic16 (discontinued)

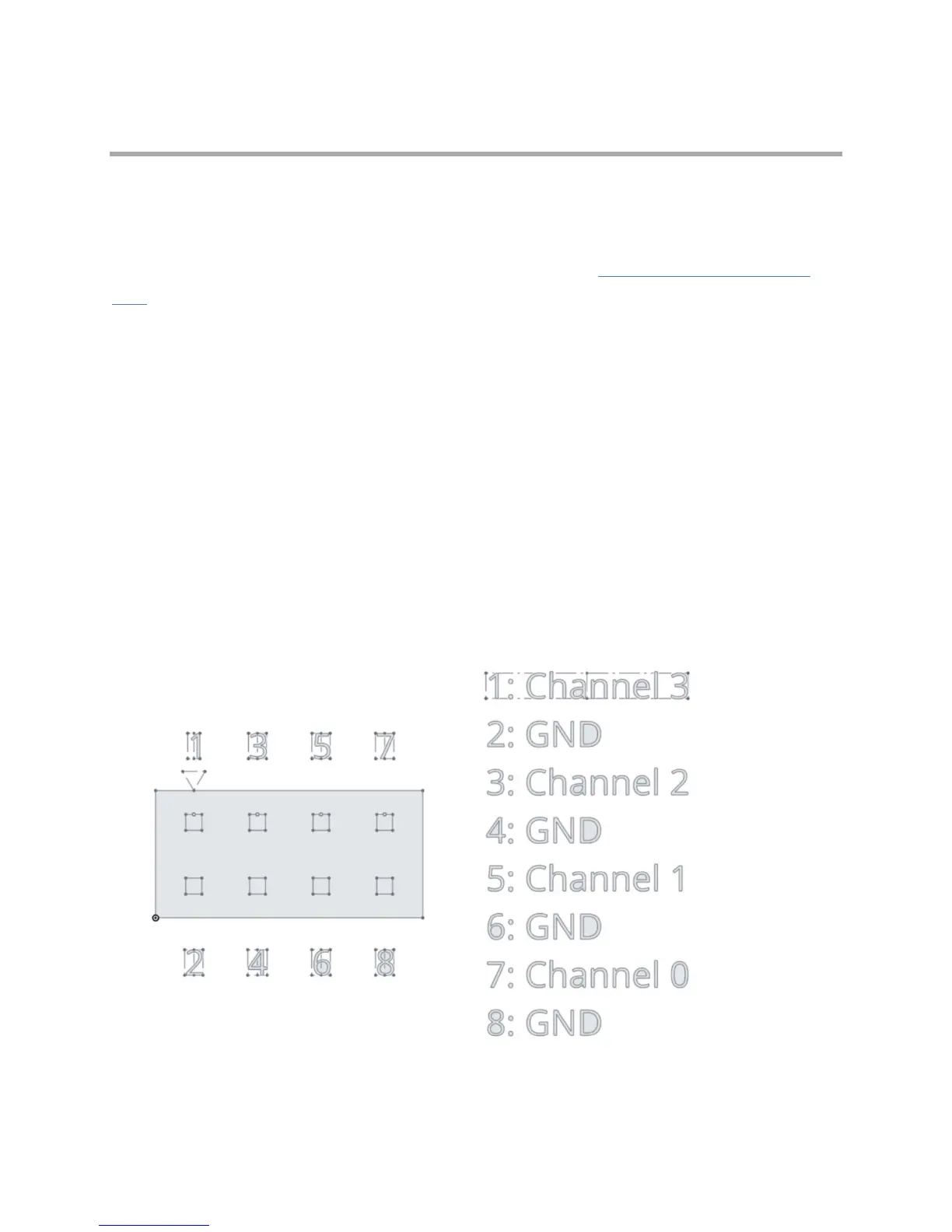

When using the Gen 2 Logic-to-2x4 header adapters, please use this pin out on your board (top view):

Saleae Logic Specifications

General

Operating System Compatibility	Windows, macOS, Linux
Power Supply	USB powered
Input Impedance	1 MΩ
Interface	USB 2.0
Supported Protocols	CAN, I2C, SPI
Channels	8
